From: Automated in-depth cerebral arterial labelling using cerebrovascular vasculature reframing and deep neural networks

Figure 1The alt text for this image may have been generated using AI.

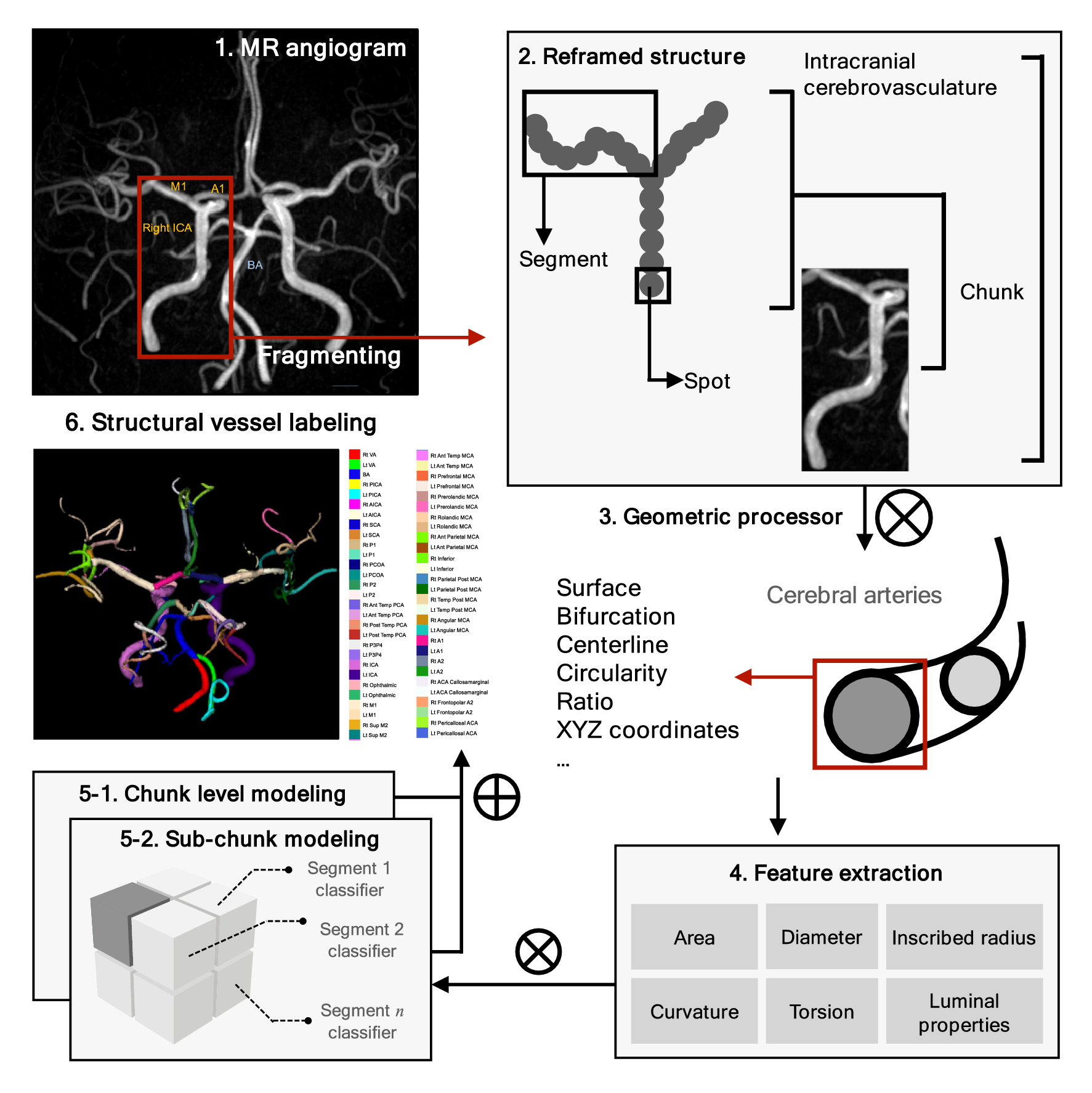

Flow schema describes the comprehensive preprocessing procedures and the geometric characterisation algorithms. Reconstruction encompasses vascular spots, segments, chunks, and branch units. Morphological and geometrcharacterisationion algorithms were used to process the vascular units automatically. A1, horizontal pre-communicating ACA; M1, sphenoidal middle cerebral artery; BA, basilar artery; ICA, internal carotid artery.
