Figure 2
From: Computational optimization of delivery parameters to guide the development of targeted Nasal spray

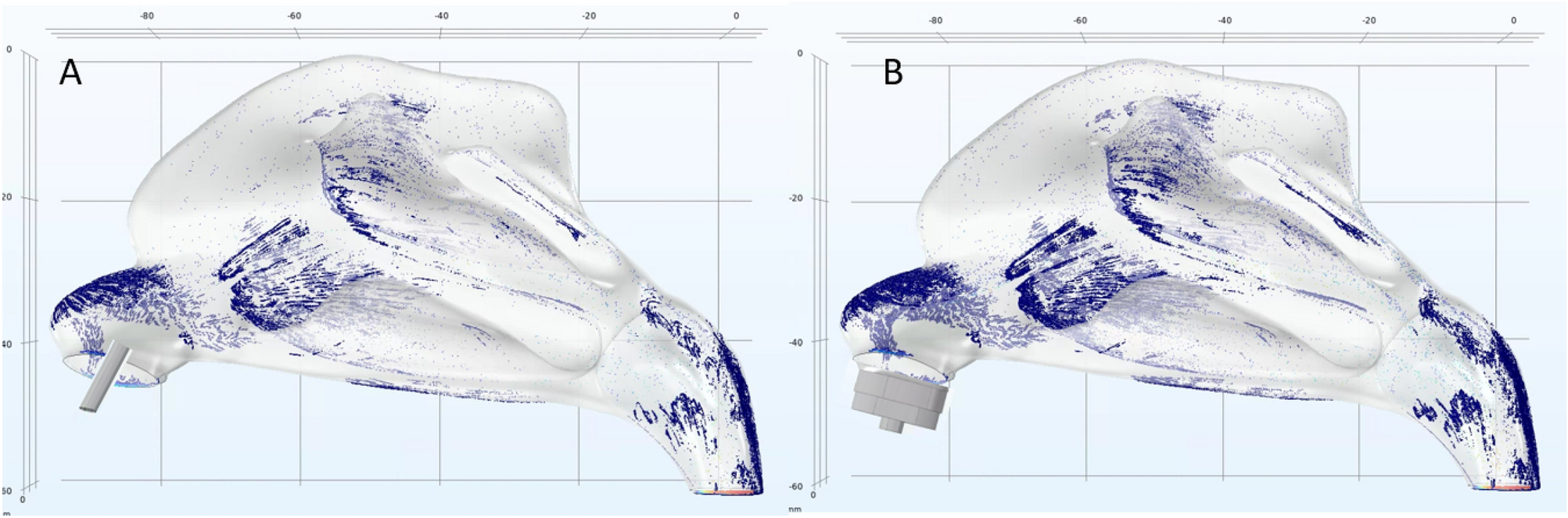

Illustration of the deposition profiles obtained with two distinct spray designs. The same parameters are used for inhalation speed (0.68m/s), cone angle (60°), spray speed (12m/s). (A) Deposition without chamber. (B) Deposition with chamber. The spray particle deposition rate of A is 16.41%, the deposition rate with diffusion chamber is about 31.09%.
