Figure 1

From: Neutron tomography of sealed copper alloy animal coffins from ancient Egypt

Figure 1

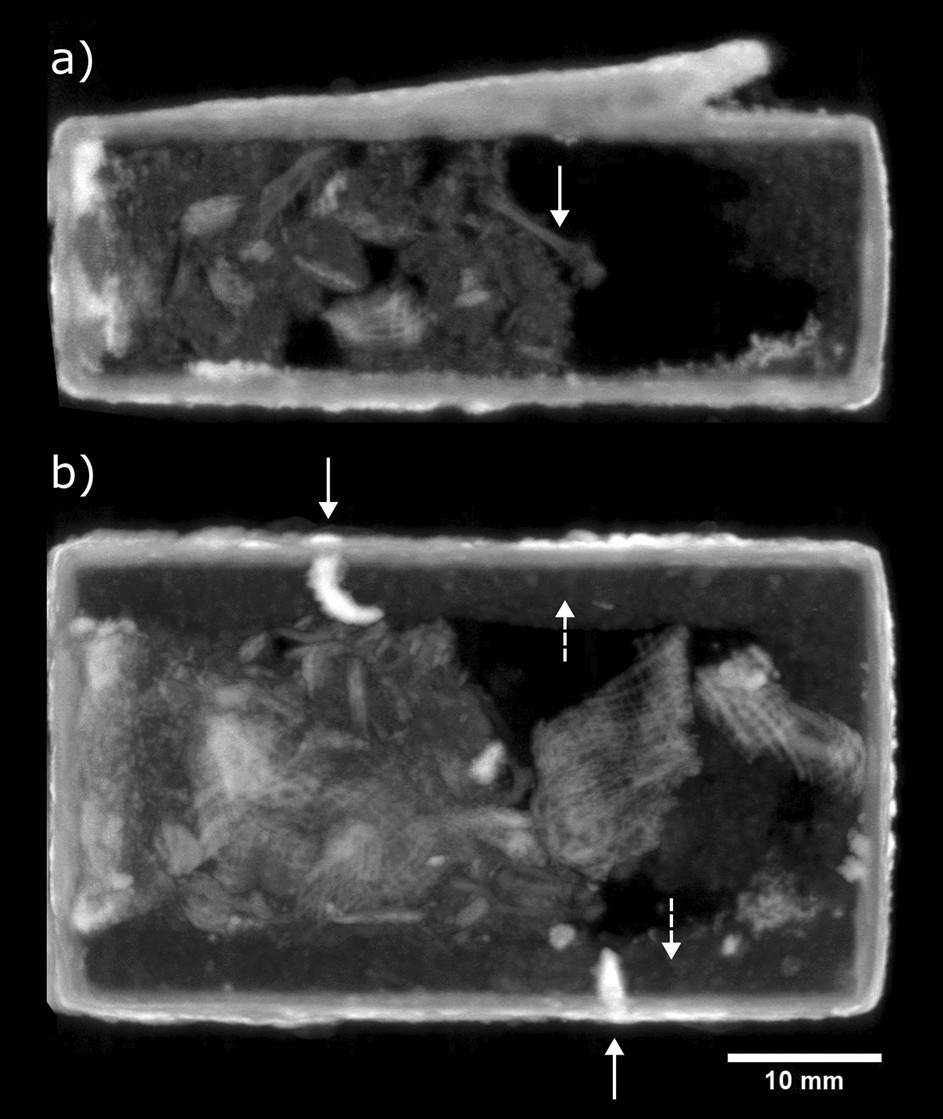

EA27584 multiplanar maximum intensity projection (MIP) neutron CT images: (a) side-view, 1.16 mm thick slice centred 6.1 mm from right side of box, highlighting the presence of an 8.1 mm long bone (solid arrow); (b) top-view, 12.43 mm thick slice centred 8.3 mm from base of box, showing the presence of textile, corroded chaplets (solid arrows), and core material (dashed arrows).
