Figure 3
From: Neutron tomography of sealed copper alloy animal coffins from ancient Egypt

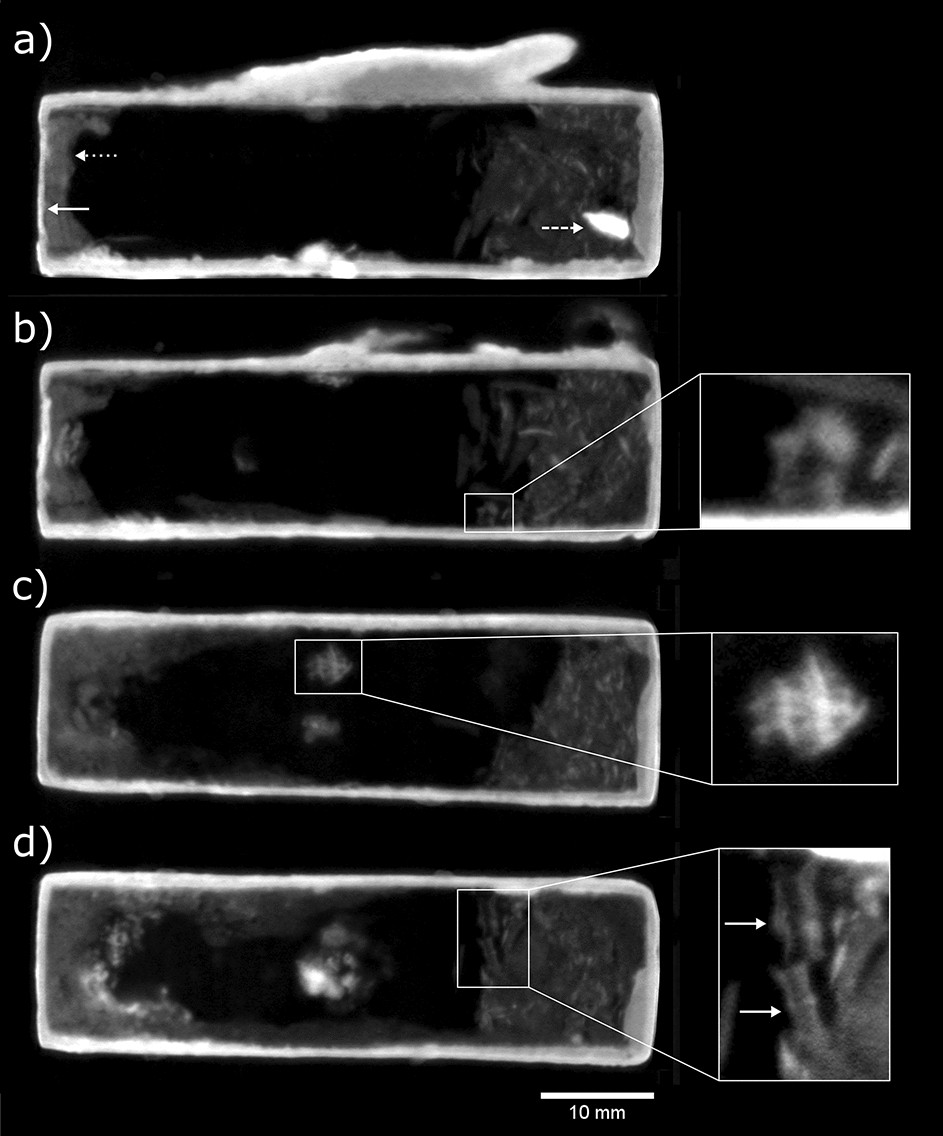

EA49146 multiplanar neutron CT slices, averaged over 0.44 mm slice thickness: (a) side-view slice centred 7.0 mm from right side of box (solid arrow: metal plate covering plug, dotted arrow: plug, dashed arrow: loose chaplet); (b) side-view slice centred 11.7 mm from right side of box (inset: vertebra, transverse cross-section); (c) top-view slice centred 13.8 mm from base of box (inset: textile fragment); (d) top-view slice centred 2.1 mm from base of box (inset: vertebrae, longitudinal cross-section, indicated by solid arrows).
