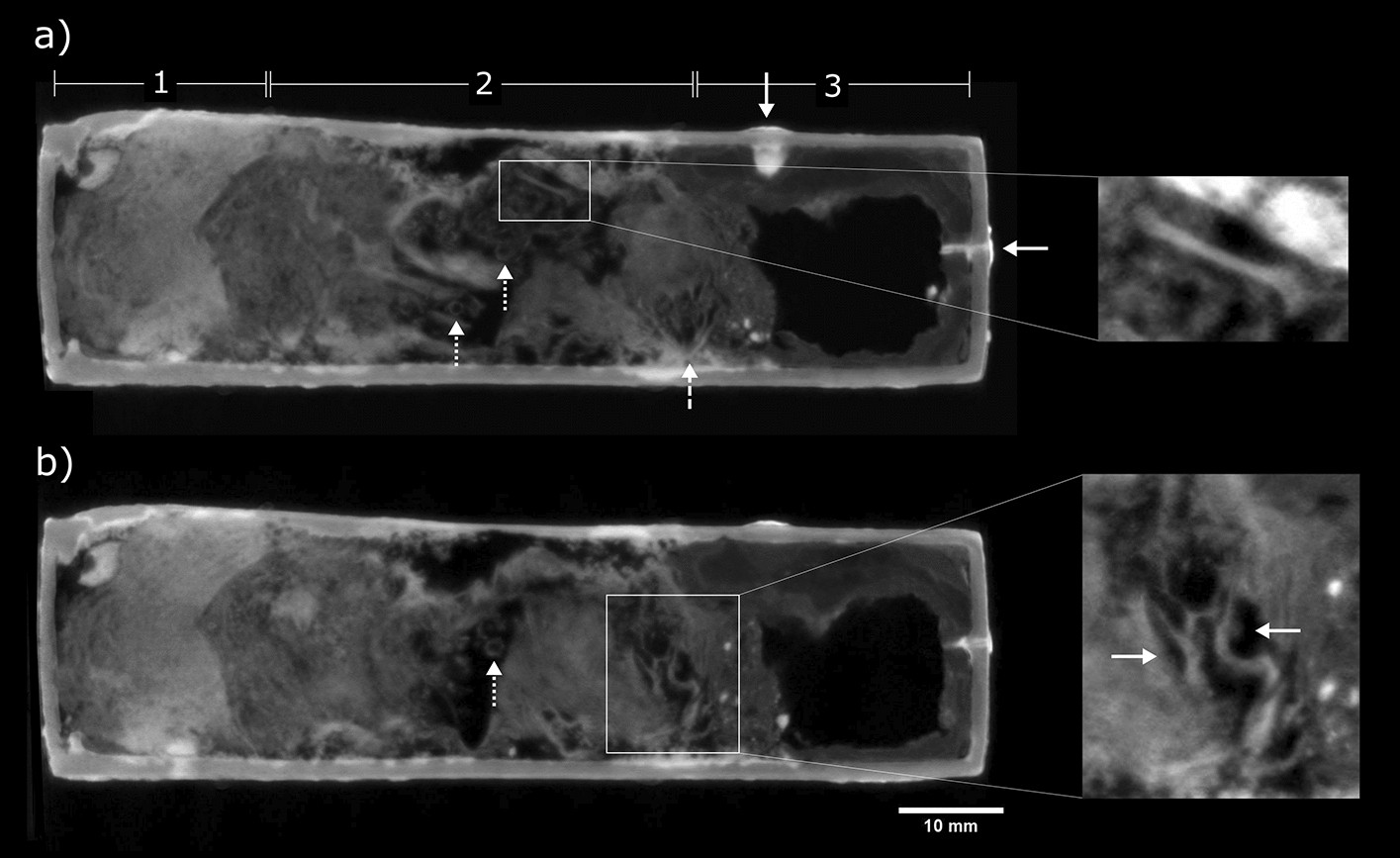

Figure 4
From: Neutron tomography of sealed copper alloy animal coffins from ancient Egypt
EA36167 multiplanar neutron CT slices, averaged over 0.55 mm slice thickness: (a) top-view slice centred 6.9 mm from base of box showing three internal regions, (1) plaster plug sealing the box, (2) textile and animal remains, (3) lead with void in centre (solid arrows: corroded chaplets; dotted arrows: vertebrae, transverse cross-sections; dashed arrow: lizard skull; inset: contrast-enhanced view of a long bone measuring 6.2 mm in length); (b) top-view slice centred 8.9 mm from base of box (dashed arrow: vertebra; inset: contrast-enhanced view of upper part of lizard skull in top-view, with orbits indicated by solid arrows).
