Figure 5
From: Neutron tomography of sealed copper alloy animal coffins from ancient Egypt

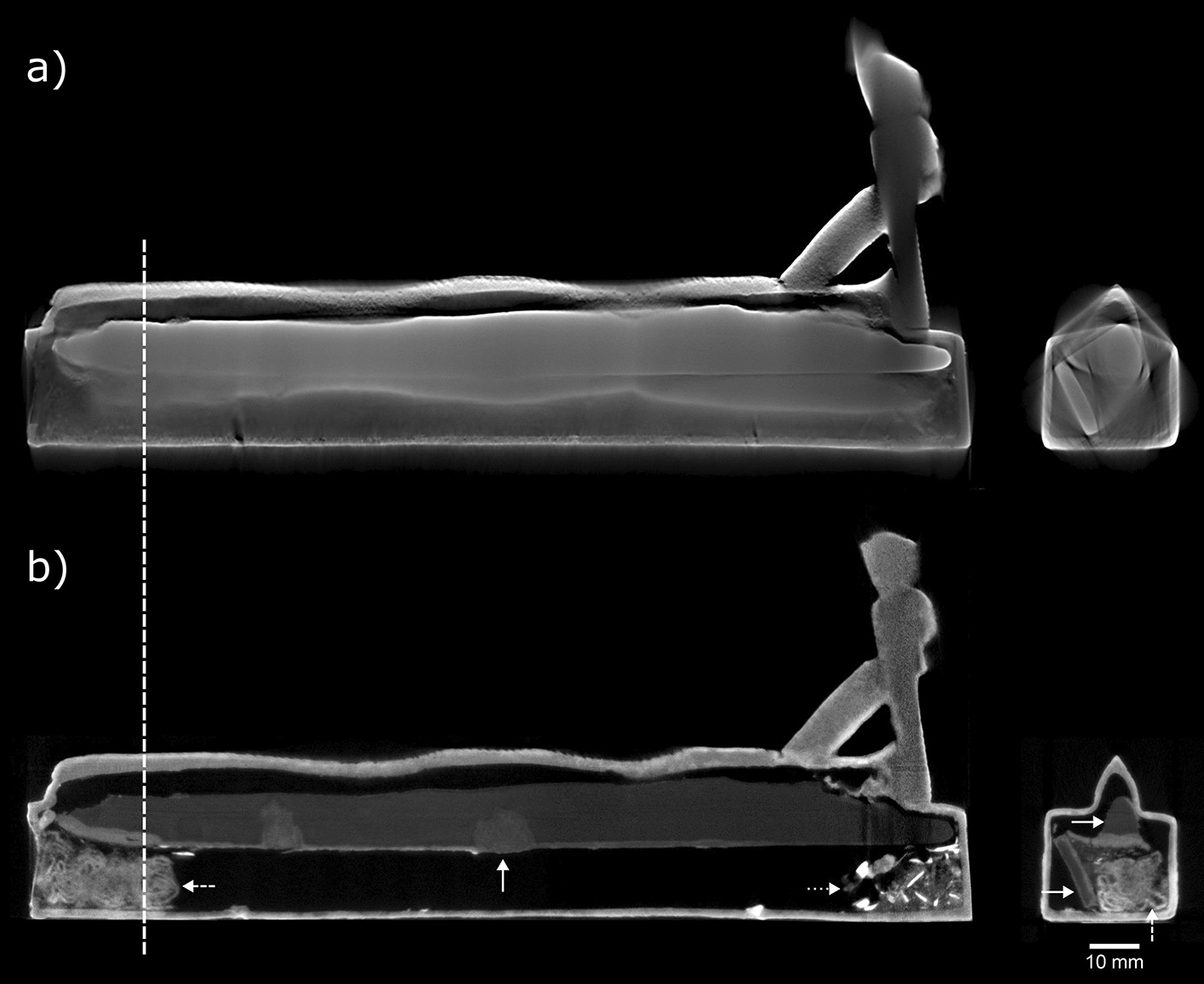

EA71428 (a) X-ray and (b) neutron CT slices (side-view and front-view). Front-view slices taken at the position marked by the dashed line. The neutron CT images are averaged over two adjacent planes (giving a 0.110 mm slice thickness), to approximately match the X-ray CT data (0.108 mm slice thickness). Solid arrows: lead pieces (in the neutron CT side-view, the arrow is centred on a region of deep lead corrosion in the upper lead piece); dashed arrows: textile in plug; dotted arrow: loose fragments. X-ray CT data were acquired during the previous study9.
