Figure 11

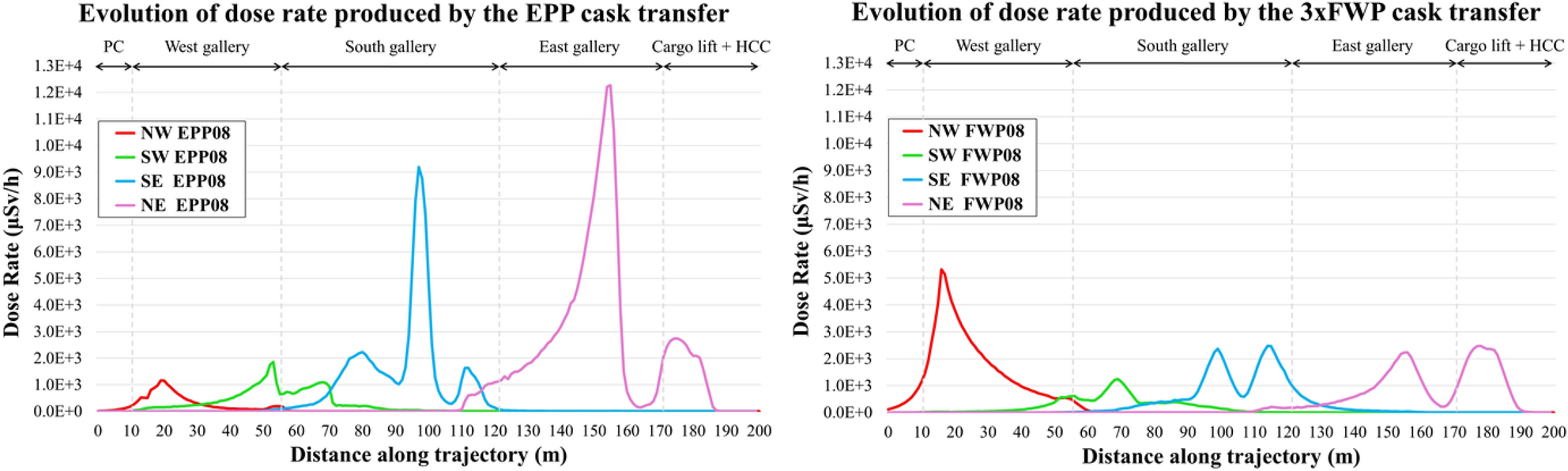

Time evolution of the dose rate, averaged on the L1 shielded corners, for the transfer of the equatorial port plug and 3 first wall panels over travelled distance. Positions within the port cell, west, south and east galleries and cargo lift and beyond are shown.
