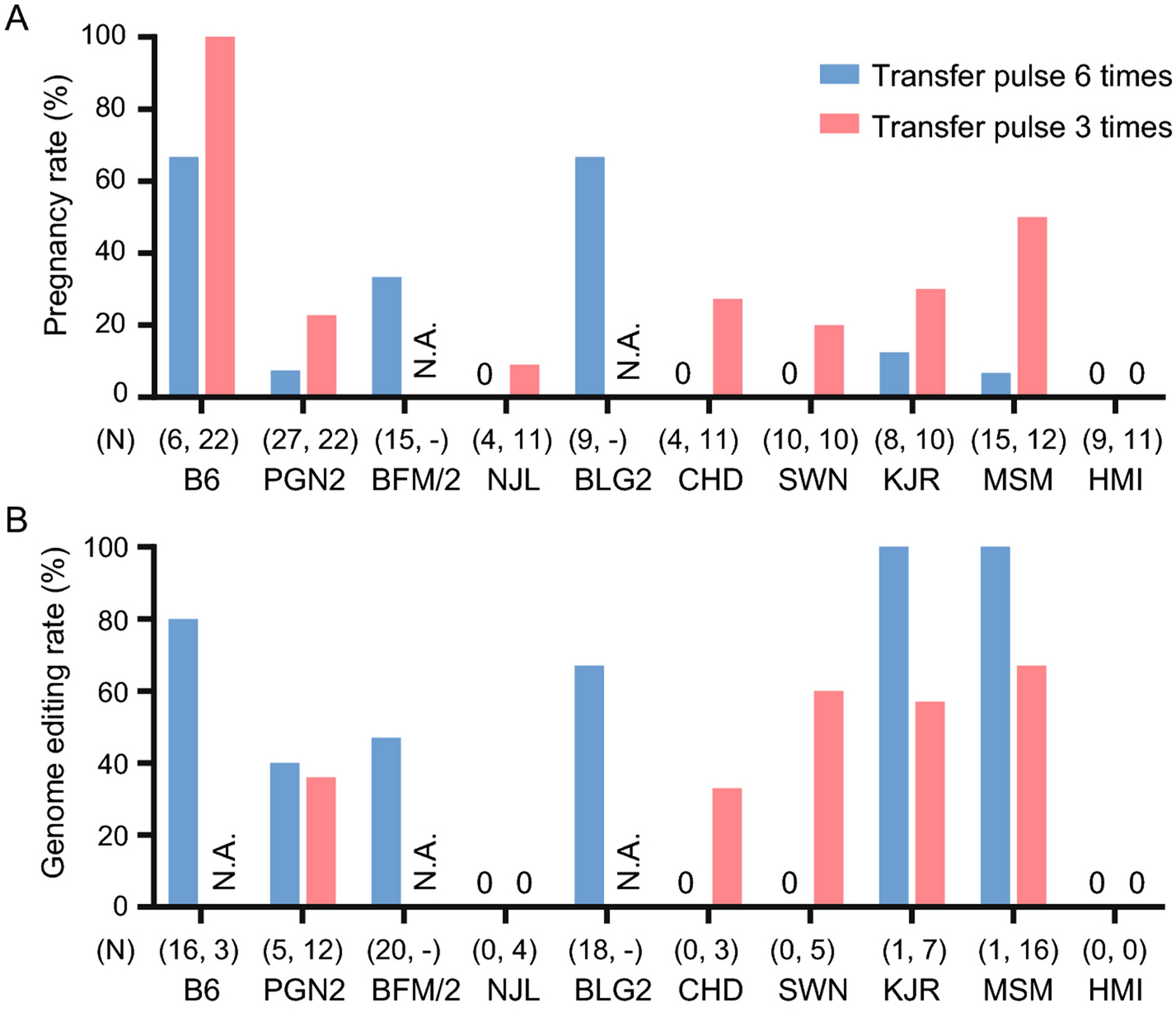

Figure 3
From: Author Correction: Efficient genome editing in wild strains of mice using the i-GONAD method
Comparison of efficiencies between the methodologies of 6 times transfer pulse (TP:6) and 3 times transfer pulse (TP:3) in the i-GONAD experiments. N; number of pups obtained in the i-GONAD experiments in each strain. (A) Overview of the pregnancy rates between TP:6 and TP:3. N.A., not analyzed. (B) Efficiencies of genome editing upon application of TP:6 and TP:3. The efficiencies were calculated by dividing the number of genome-edited pups by the number of all the sampled pups in each strain. The B6 strain and seven wild strains that displayed low pregnancy rates (< 20%) were further examined with the TP:3 condition.
