Figure 5

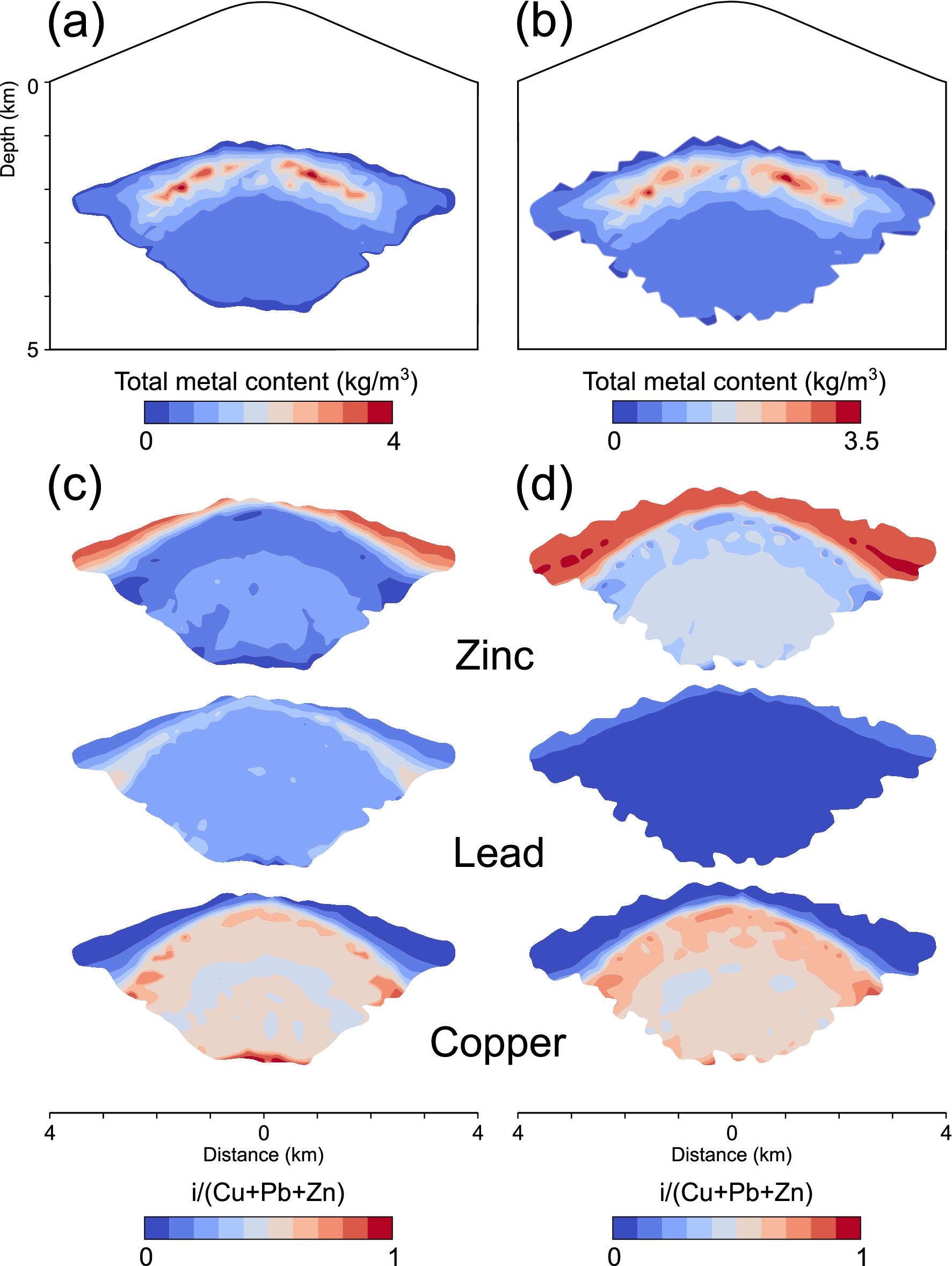

Total modeled metal content of the rock after 100 kyrs of simulation time above a threshold of 0.5 kg/m3 (sum of the copper, lead and zinc contents) for the simulations 1 (a) and 3 (b). Individual metal fractions within these areas of enrichment illustrate the modeled base metal zonation (c, d).
