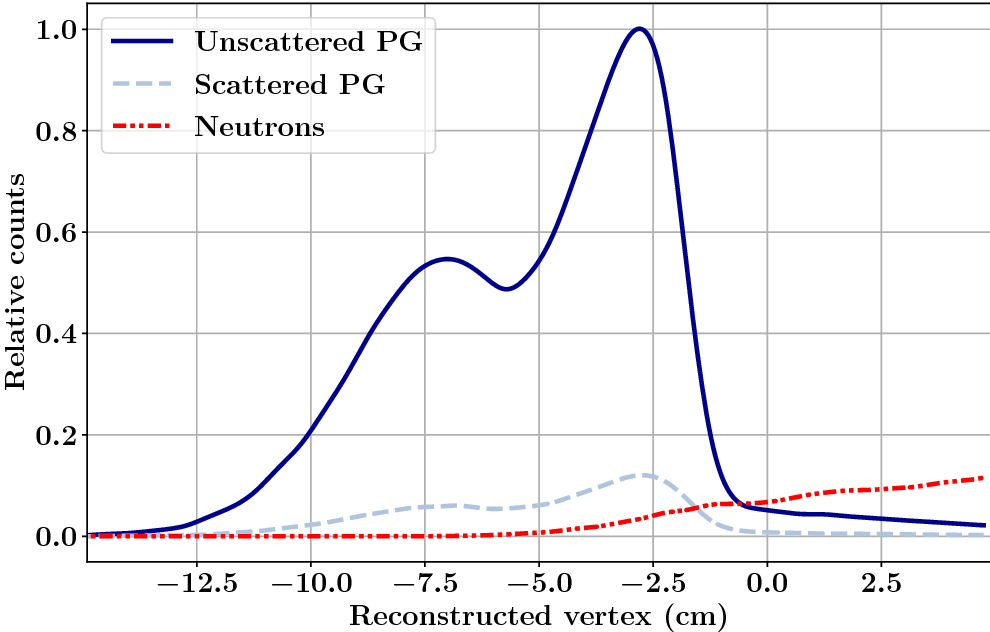

Figure 11
From: A high sensitivity Cherenkov detector for prompt gamma timing and time imaging
Vertex distributions of different secondary particles generated by a 100 MeV proton beam impinging on the spherical phantom head described in Jacquet et al.18. Data are obtained by MC simulation (Geant4.10.4.p02 toolkit with the QGSP-BIC-EMY physics list); the detector is not simulated. The contribution of PG scattered in the phantom is reported separately. It can be observed that their profile has the same shape as the one from unscattered PGs and therefore they constitute a valuable signal. The contribution of secondary neutrons (in red) is not constant and cannot be easily rejected by TOF without compromising the measurement of the PG profile fall-off. Data are taken from Jacquet et al.18.
