Figure 7

From: Fenretinide inhibits obesity and fatty liver disease but induces Smpd3 to increase serum ceramides and worsen atherosclerosis in LDLR−/− mice

Figure 7

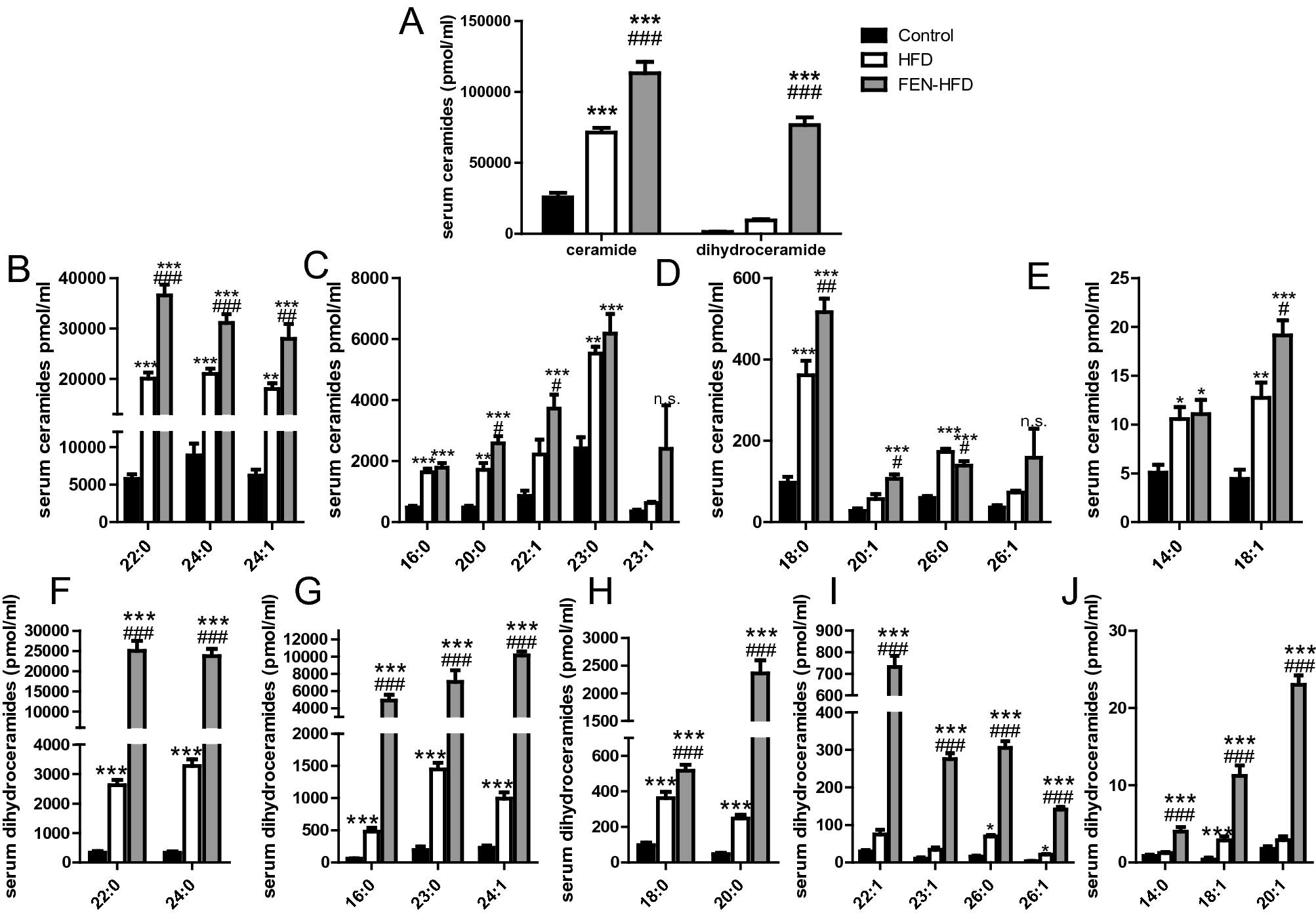

Fenretinide increases serum ceramide and dihydroceramide levels in LDLR-/- mice. Quantification of ceramide (A,B–E) and dihydroceramide (A,F–J) species in serum. Data are represented as mean + S.E.M. and analysed by one-way ANOVA followed by Bonferroni multiple comparison t-tests where *p ≤ 0.05, **p ≤ 0.01 and ***p ≤ 0.001 (control compared to HFD) or #p ≤ 0.05, ##p ≤ 0.01 and ###p ≤ 0.001 (HFD compared to FEN-HFD).
