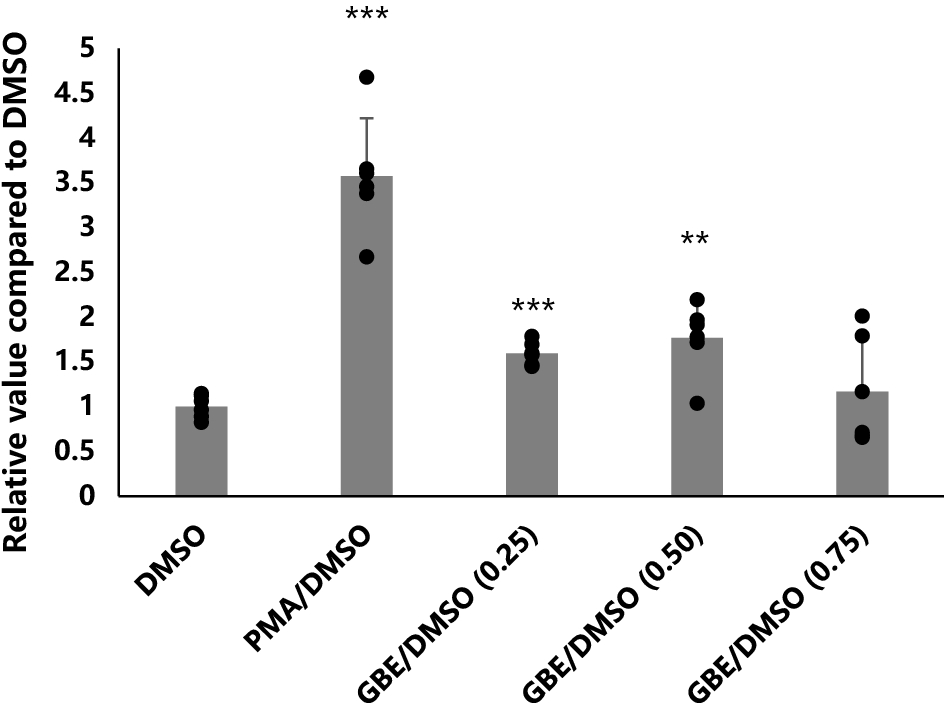

Figure 1
From: Ginkgo biloba extracts improve choroidal circulation leading to suppression of myopia in mice
Effects of various GBEs concentrations on EGR-1 activation in a luciferase assay. GBEs were tested at three different doses, and both 0.25 mg/ml and 0.5 mg/ml concentrations of GBEs showed a statistically significant increase in EGR-1 activity in a luciferase assay (n = 6). **p < 0.01, ***p < 0.001. Bars represent mean + / − standard deviations. The one-way ANOVA was used for statistical analysis. EGR-1: early growth response protein 1; GBEs: Ginkgo biloba Extracts; DMSO: dimethyl sulfoxide; PMA: phorbol 12-myristate 13-acetate.
