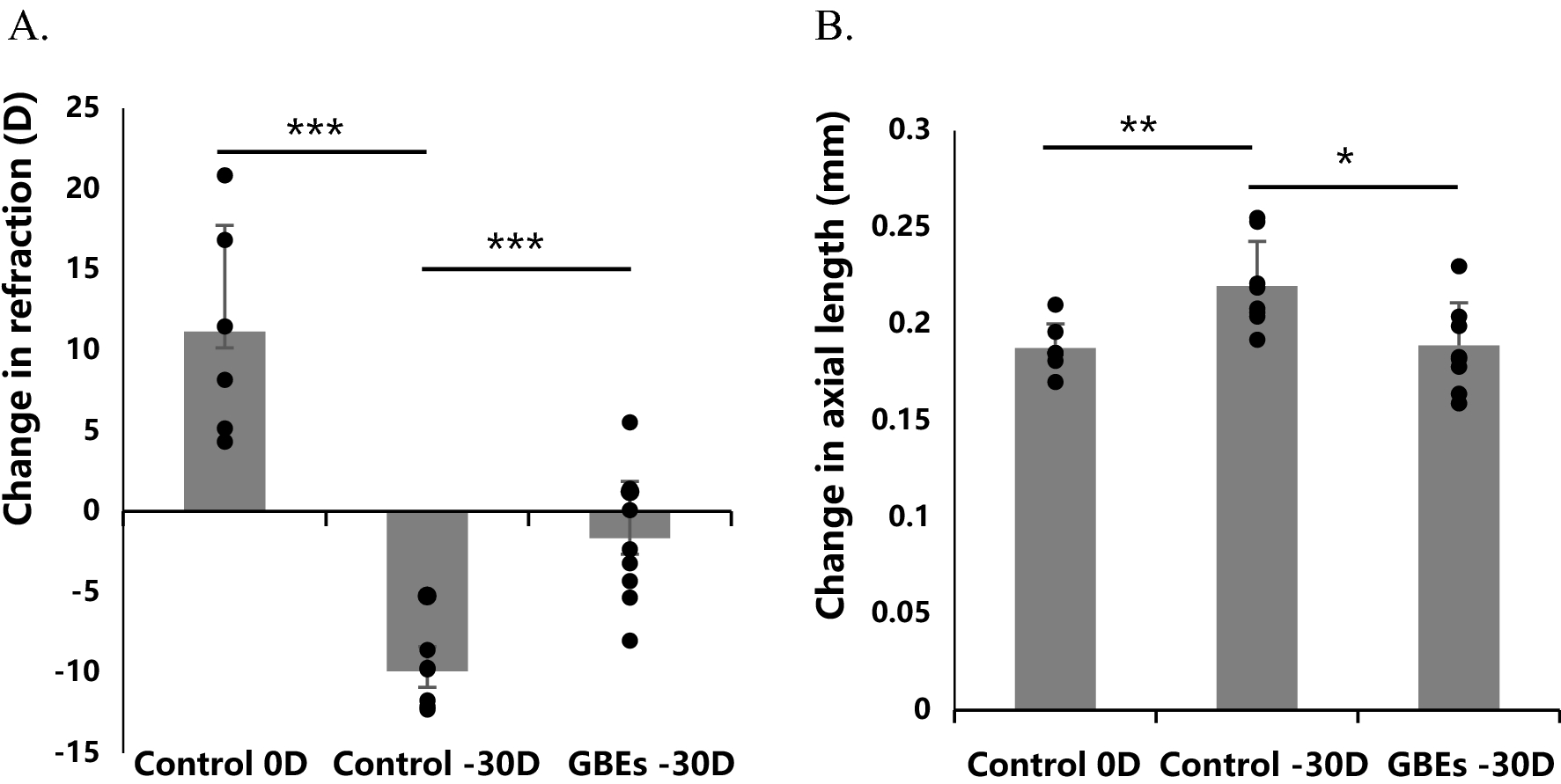

Figure 2
From: Ginkgo biloba extracts improve choroidal circulation leading to suppression of myopia in mice
GBEs significantly suppressed a myopic refractive shift and axial elongation in a murine LIM model. (A). In the control 0 D and − 30 D groups, the eyes treated with − 30 D lenses had a significantly greater refractive shift than the eyes treated with 0 D lenses (p < 0.001). When compared to the control − 30 D group, mice in the GBEs − 30 D group showed a significantly reduced refractive shift (p < 0.001) (n = 8). (B). Compared to the control 0 D group, the control − 30 D group showed a significant axial elongation (p < 0.01). Compared to the control − 30 D group, the GBEs − 30 D group showed a significantly smaller axial elongation (p < 0.05) (n = 8). *p < 0.05, **p < 0.01, ***p < 0.001, bars represent mean + / − standard deviations. The one-way ANOVA was used to determine significant differences.
