Figure 5
From: Fiber enhancement and 3D orientation analysis in label-free two-photon fluorescence microscopy

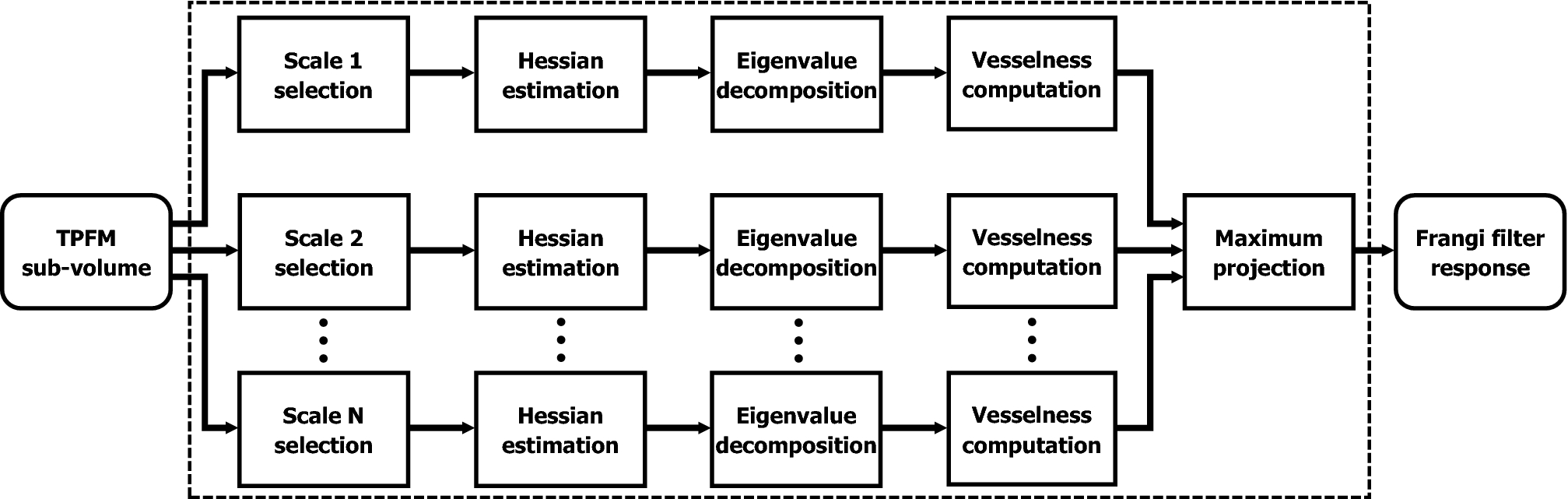

Block scheme representing the main computational steps of the Frangi filter. In the present application, the estimation of the vesselness probability function over different spatial scales was parallelized for efficiency’s sake.
