Figure 4
From: Adaptive control for downhole nuclear magnetic resonance excitation

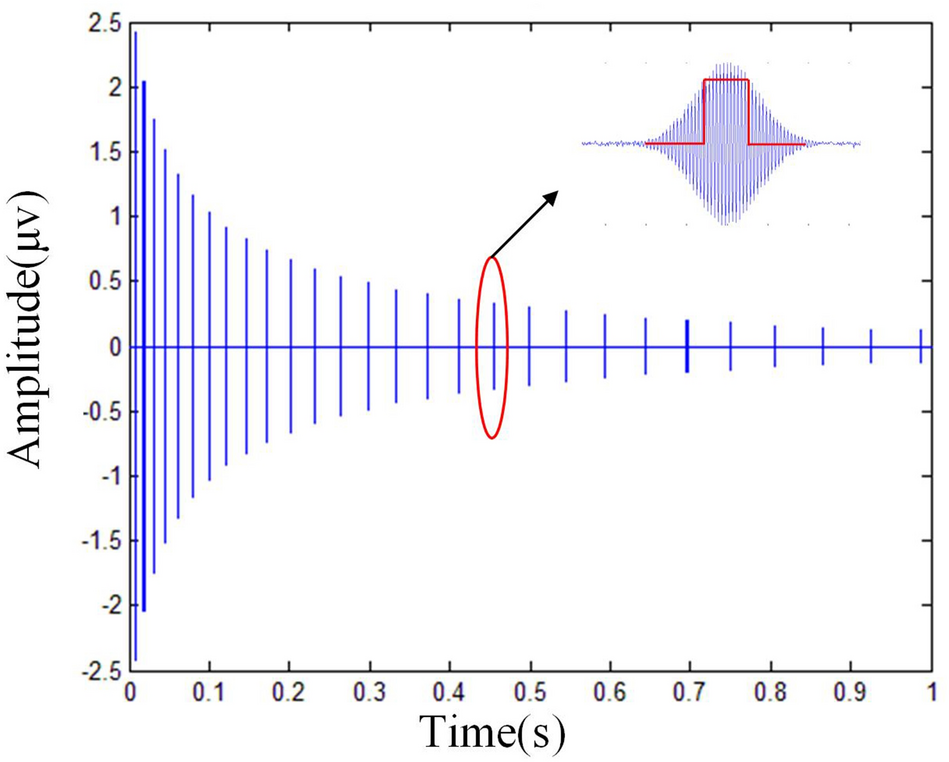

Echo acquisition using the variable TE pulse sequence.Each blue line represents the echo that appears after the 180° pulse, and the echo width is the same as the 180° pulse width, but only 32 echo cycles (about 64 μs) are acquired by opening the acquisition window, echo amplitude is considered to be uniform in this window.
