Figure 5
From: Adaptive control for downhole nuclear magnetic resonance excitation

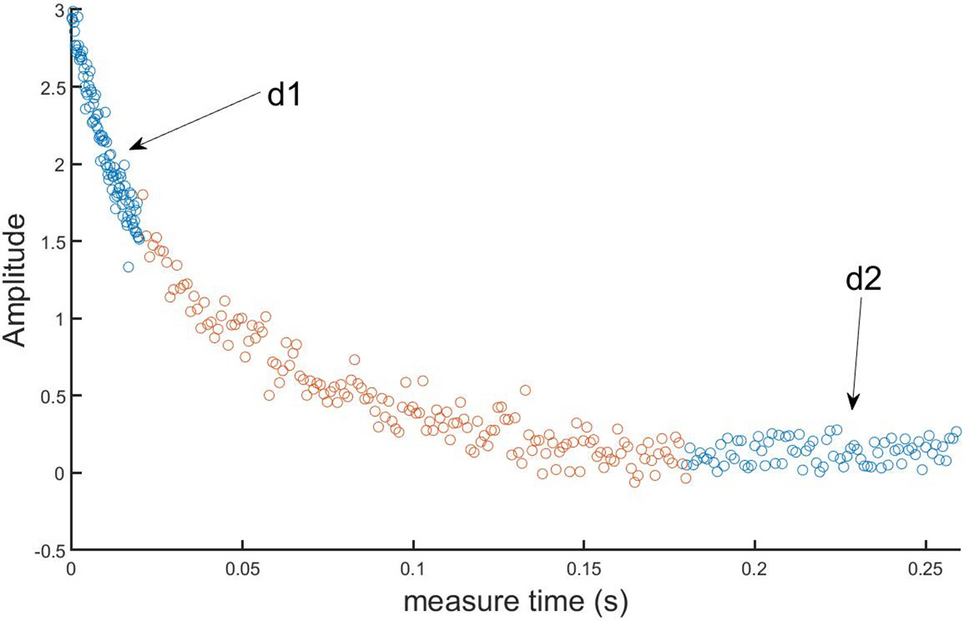

Scatter plot of the echo train. The circles represent echo data points acquired during a pulse sequence, and the blue circles represent the echo amplitudes of the head and end of the echo train.
