Figure 8
From: Adaptive control for downhole nuclear magnetic resonance excitation

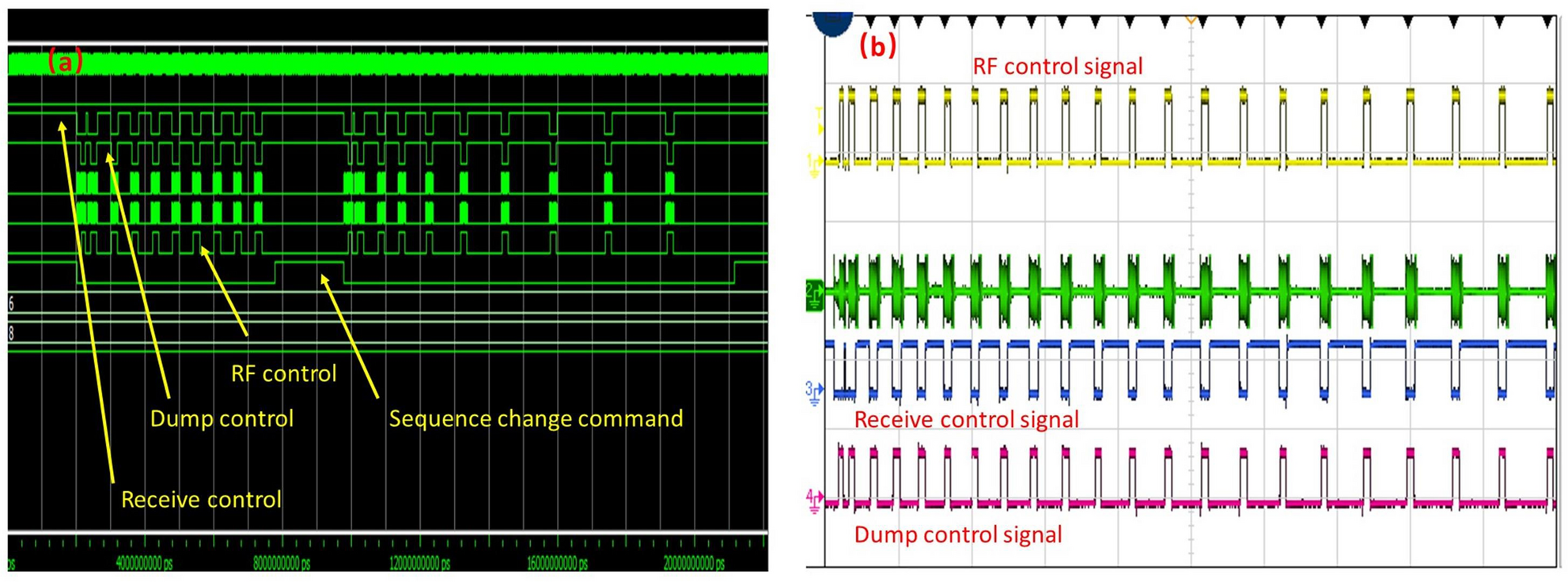

Pulse sequence timing control of nuclear magnetic circuit. (a) Pulse sequence dynamic switching simulation results including receive control signal, dump control signal and RF control signal; (b) the signal obtained by the oscilloscope test.
