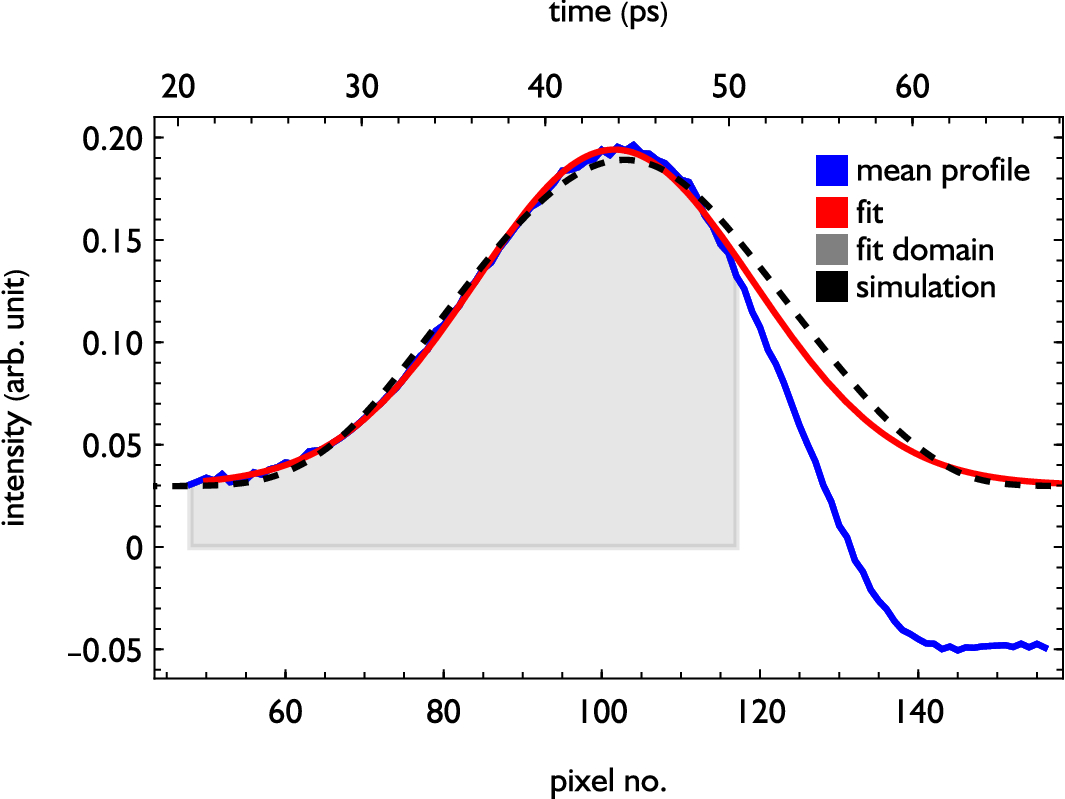

Figure 6
Determination of the rotation center shown for the case of first revolution plot in Fig. 3. Pixel no. 102 is located closest to the center point. The black dashed line displays the mean bunch profile from our simulations. The time axis shown for the experimental data is calculated from calibration measurements39.
