Figure 3
From: Experimental verification of seafloor crustal deformation observations by UAV-based GNSS-A

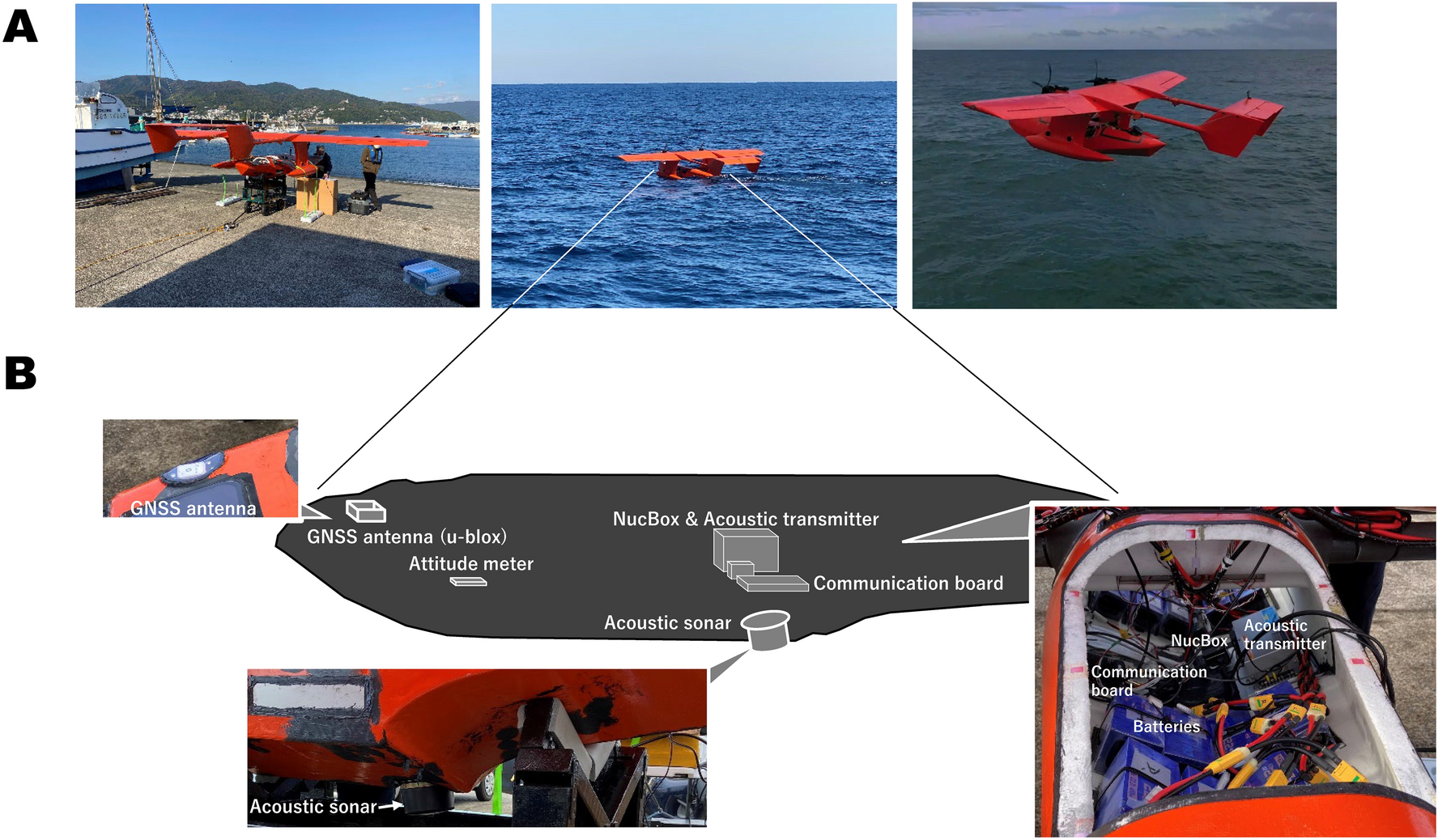

(A) Photographs of the UAV HAMADORI6000 prototype model used in this study. From left to right: before departure, during observation, and during flight test. (B) Internal configuration with photographs of the GNSS antenna, acoustic sonar, and control system.
