From: Long term nitrogen deficiency alters expression of miRNAs and alters nitrogen metabolism and root architecture in Indian dwarf wheat (Triticum sphaerococcum Perc.) genotypes

Figure 4

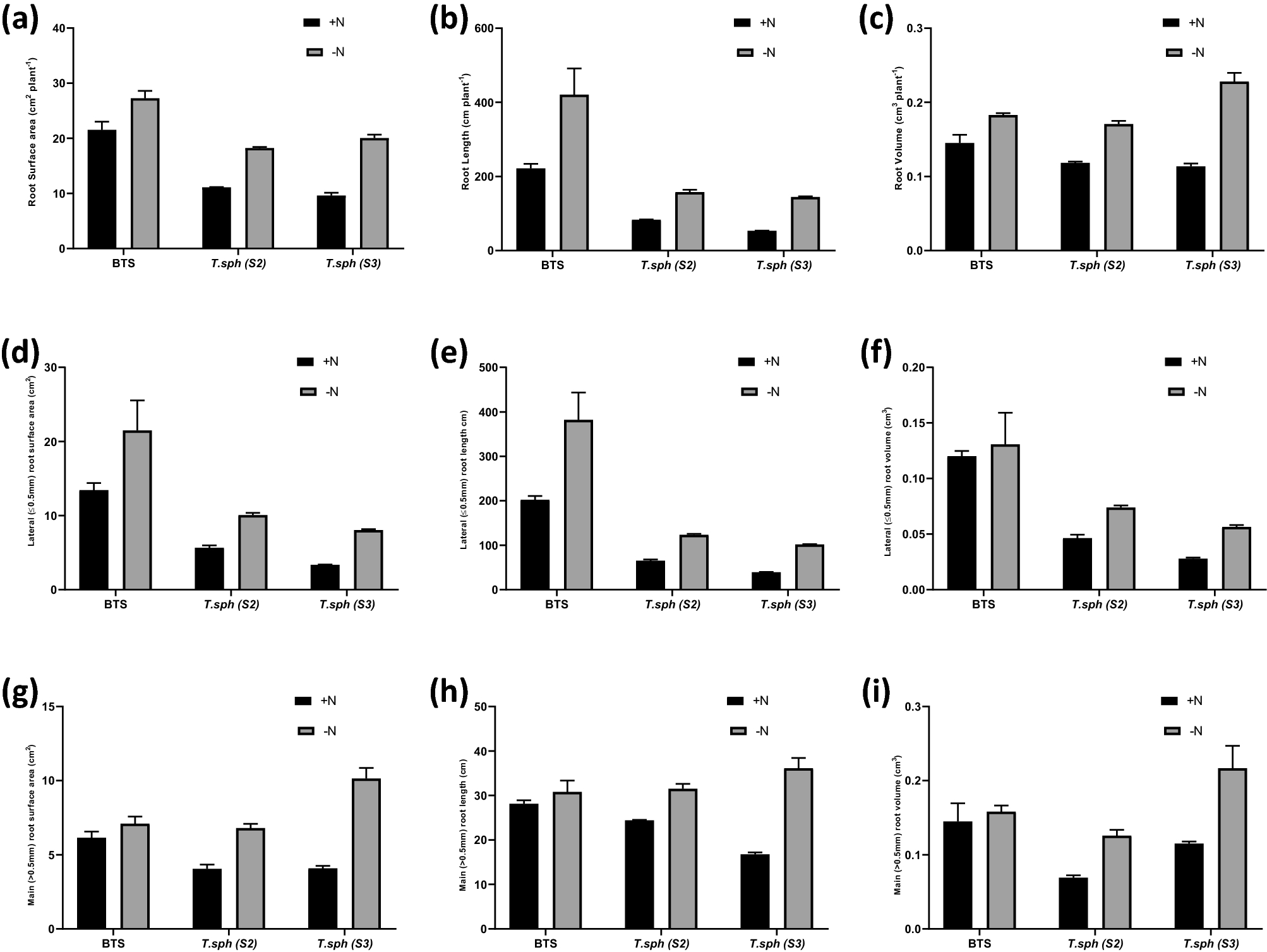

Effect of nitrogen deficient (0.05 mM nitrate, N−) and nitrogen sufficient (7.5 mM nitrate, N+) conditions on surface area (a, d, g), root length (b, e, h) and root volume (c, f, i) of total, lateral and main roots of thirty days old seedlings of wheat genotypes grown under hydroponic culture.
