Figure 11
From: Novel coil design and analysis for high-power wireless power transfer with enhanced Q-factor

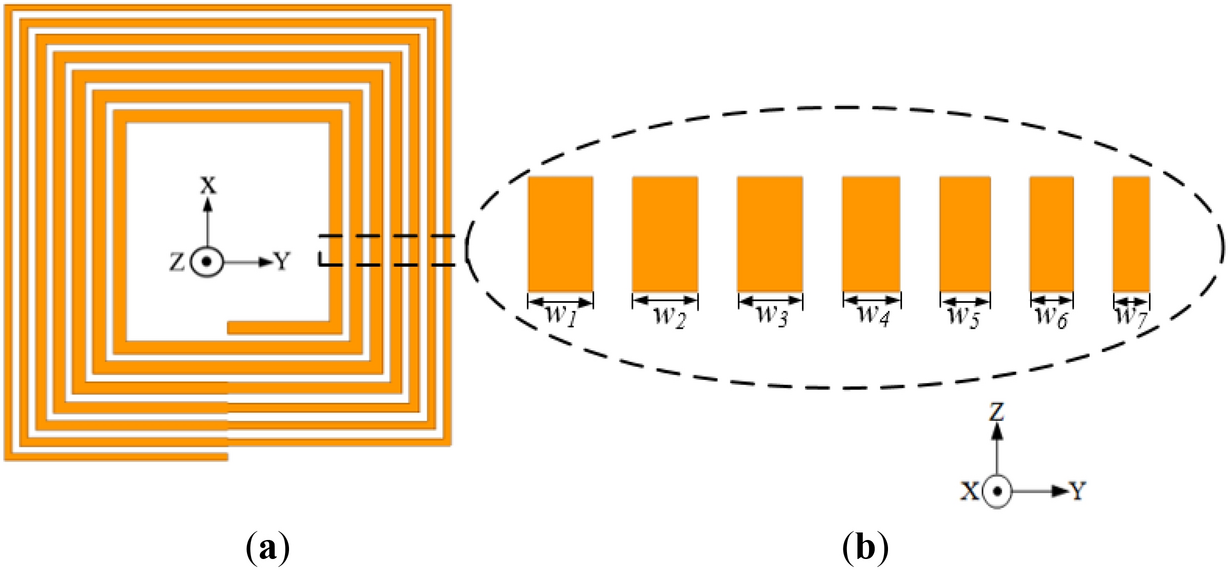

Configuration of the conventional coil structure with wider inner trace width relative to the outer turns (reverse structure of Coil-W) (a) isometric view and (b) cross section of the exploded view of each coil turn with different widths.
