Figure 14
From: Novel coil design and analysis for high-power wireless power transfer with enhanced Q-factor

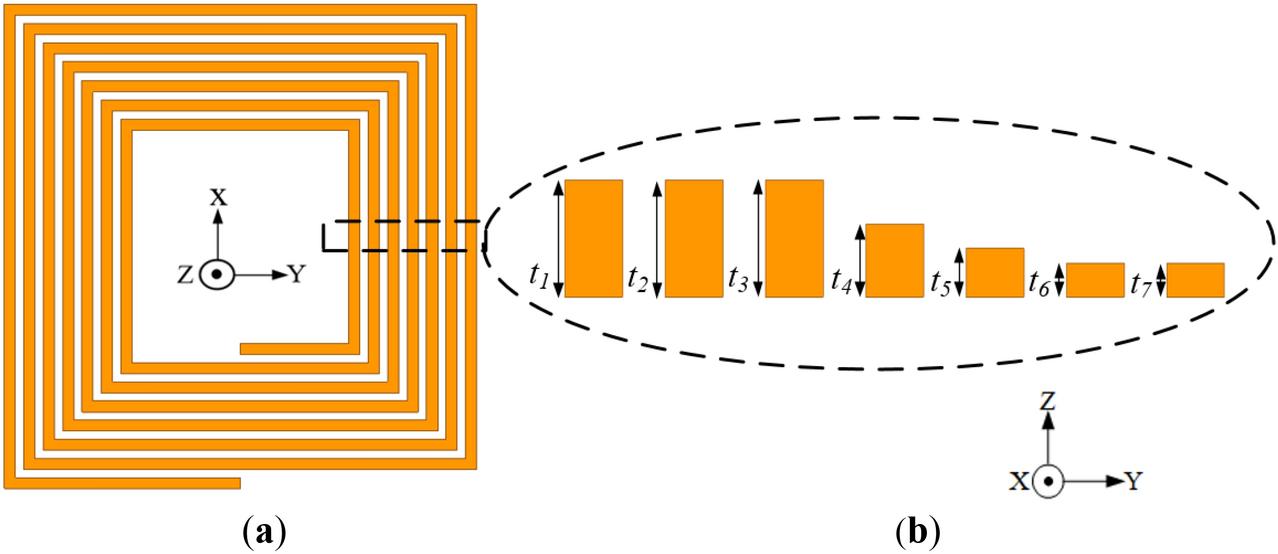

Configuration of the conventional coil with increased inner thickness relative to the outer turns (reverse structure of Coil-T) (a) isometric view and (b) cross section of the exploded view of each coil turn with different thickness.
