Figure 3
From: Negative magnetostrictive paper formed by dispersing CoFe2O4 particles in cellulose nanofibrils

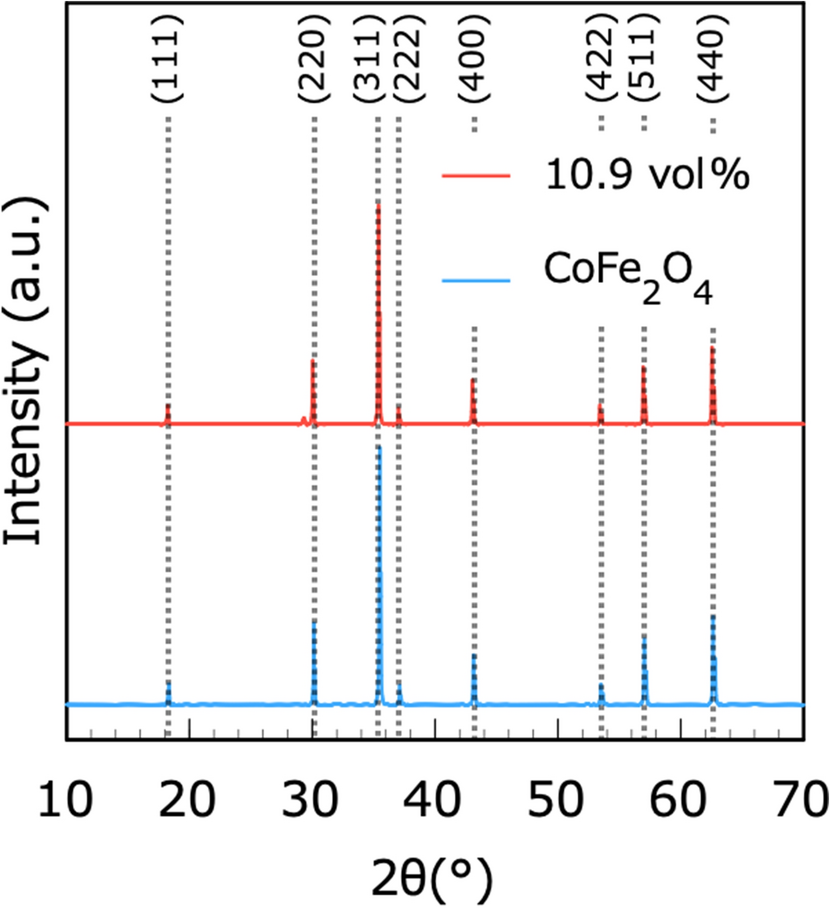

XRDs patterns of the 10.9 vol% CNF–CoFe2O4 composite paper (red) and CoFe2O4 particles (blue).
Figure 3 | Scientific Reports
From: Negative magnetostrictive paper formed by dispersing CoFe2O4 particles in cellulose nanofibrils
XRDs patterns of the 10.9 vol% CNF–CoFe2O4 composite paper (red) and CoFe2O4 particles (blue).
