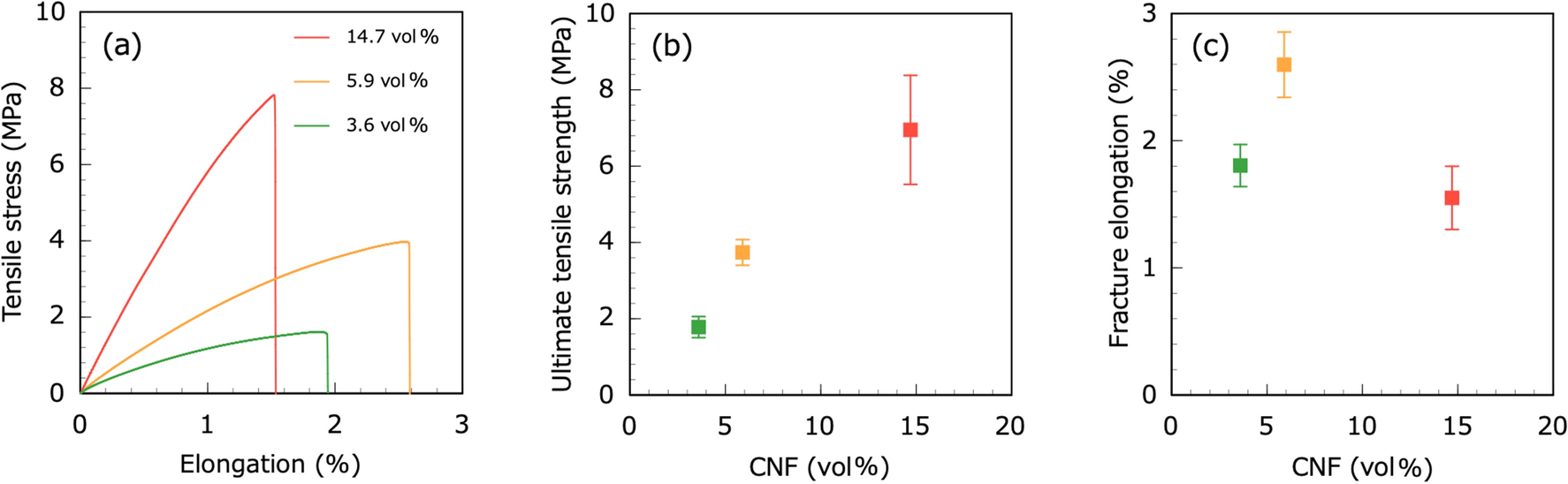

Figure 8
From: Negative magnetostrictive paper formed by dispersing CoFe2O4 particles in cellulose nanofibrils
(a) Stress-elongation curves of the CNF–CoFe2O4 composite papers; plots of (b) UTS and (c) fracture elongation versus CNF volume fraction in the CNF–CoFe2O4 composite papers.
