Figure 5
From: Air volume flow rate optimization of the guide vanes in an axial flow fan based on DOE and CFD

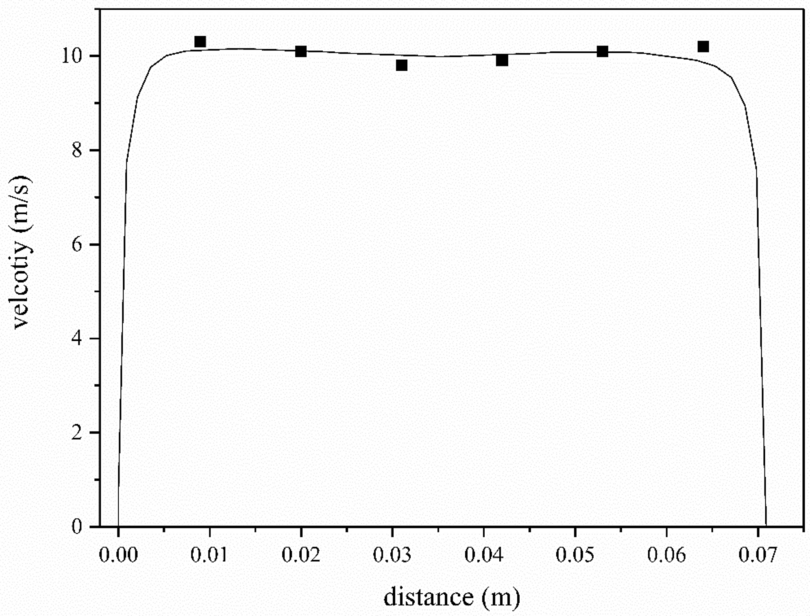

The comparison of the experimental and simulations results. The velocity of measuring points was obtained by pitot tube, which has a similar trend with the calculation results.
