Figure 10
From: Biomechanical stability of hernia-damaged abdominal walls

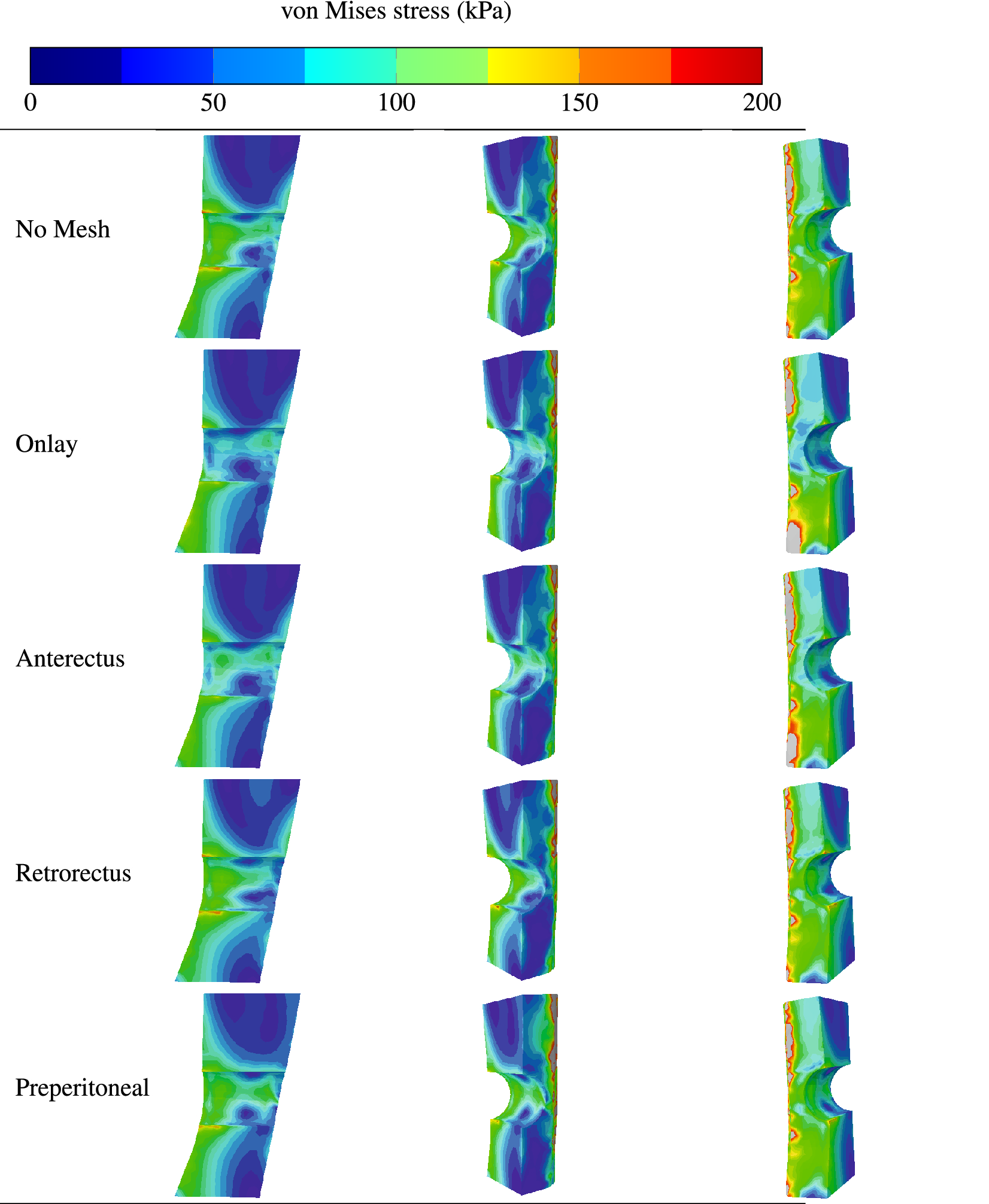

Contours of equivalent stresses in the linea albea affected by hernia when no mesh is applied (first row) and in the presence of a surgical mesh implants at the onlay plane (second row), anterectus plane (third row), retrorectus plane (fourth row), and at the preperitoneal plane (fifth row).
