From: Machine learning unifies flexibility and efficiency of spinodal structure generation for stochastic biomaterial design

Figure 5

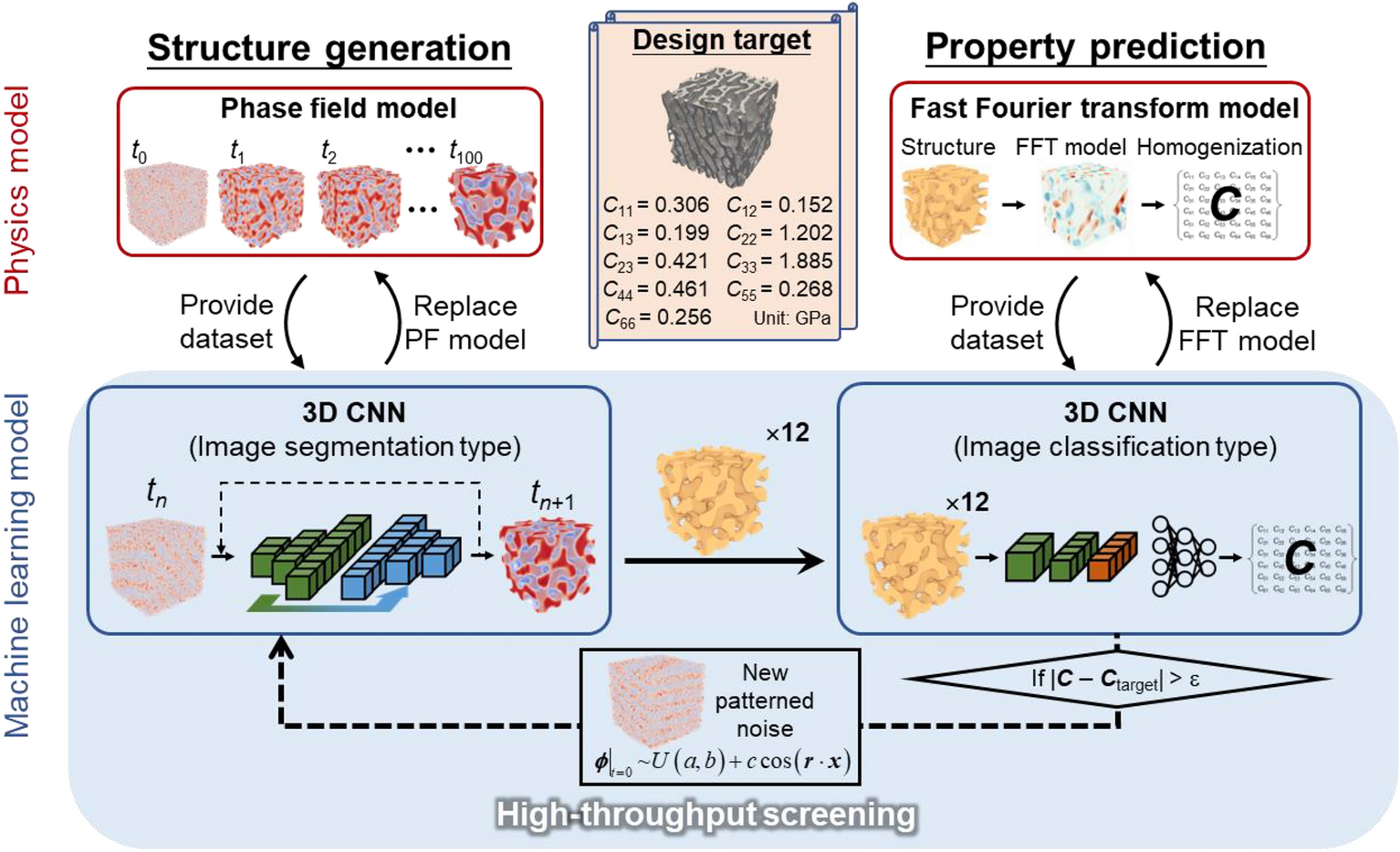

CNN-based high-throughput screening for spinodal structure with target anisotropic elasticity. Besides the CNN used to replace phase field model for quick spinodal structure generation (left-side), an image-classification type CNN is trained to substitute FFT-based mechanics model for ultrafast property prediction (right-side). The two CNNs work in a fully integrated way, enabling high-throughput generation and screening of large amount of spinodal structures.
