Figure 10
From: Study on mechanical characteristics of anchor drilling rig group for rapid excavating

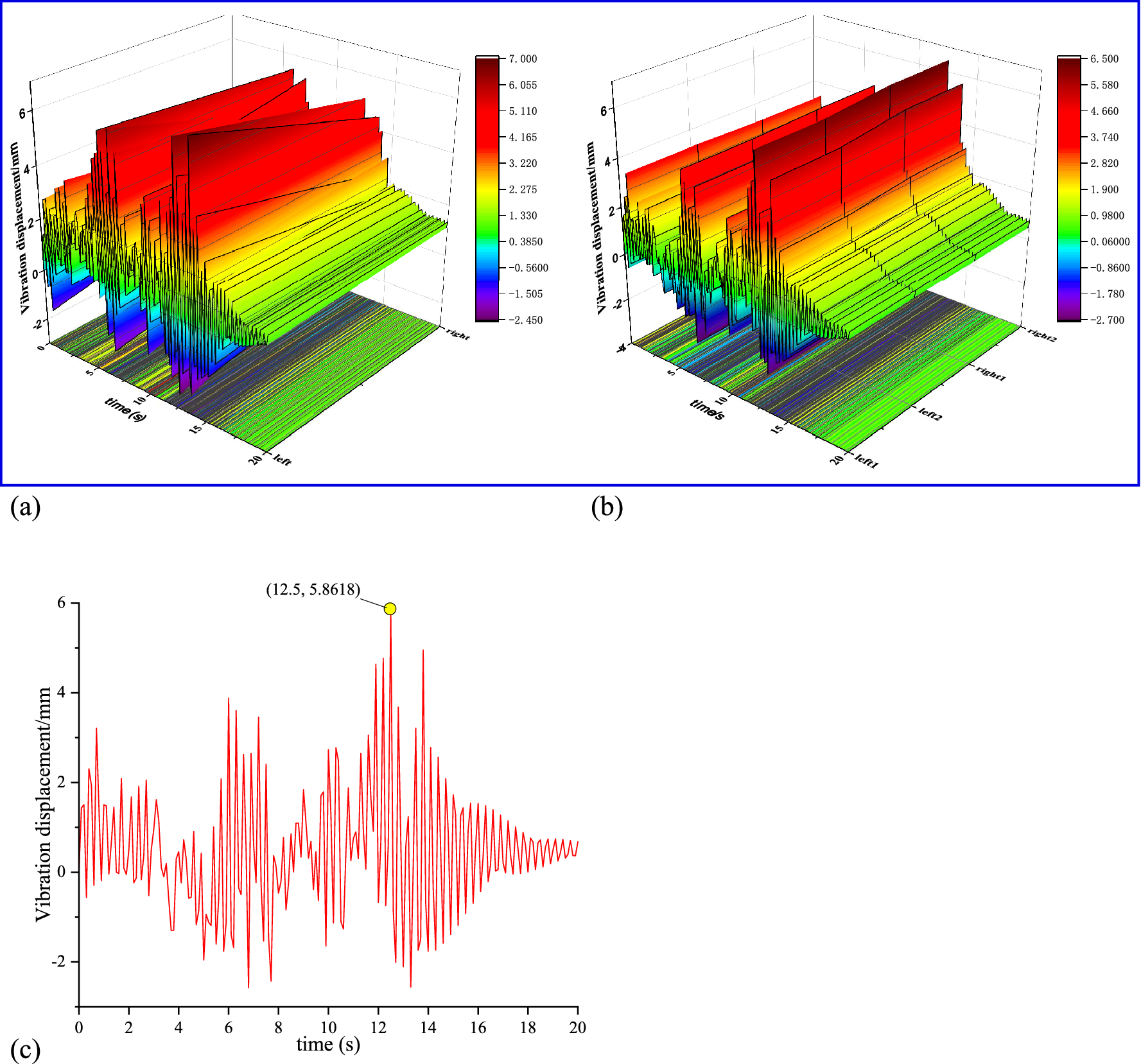

Vibration response diagram of main components of anchoring system: (a) vibration displacement diagram of top anchor and anchor cable beam; (b) vibration displacement diagram of front and rear support column beam; (c) vibration displacement diagram of support platform.
