Figure 9
From: Study on mechanical characteristics of anchor drilling rig group for rapid excavating

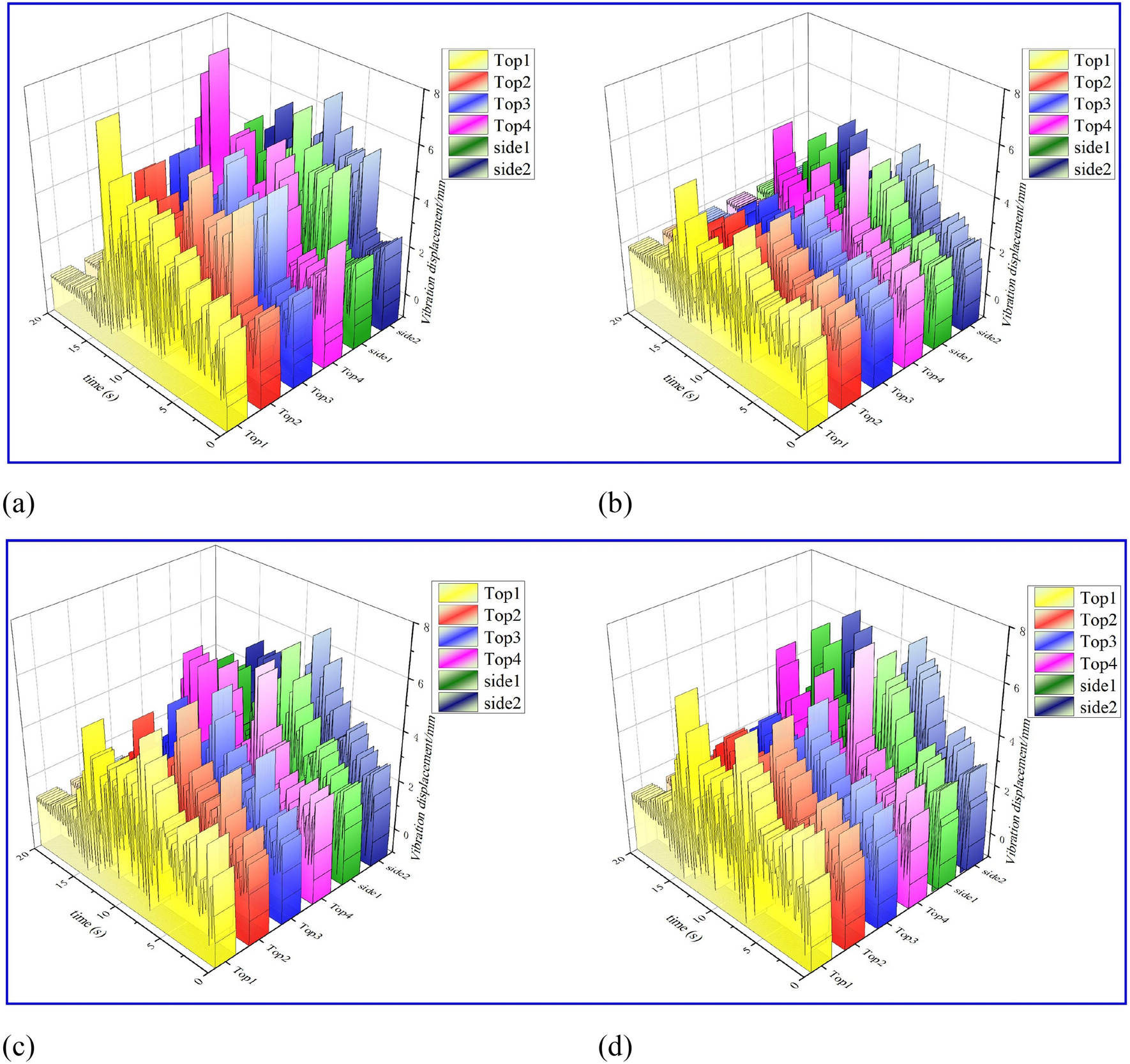

Vibration displacement response diagram of each drilling unit module: (a) vibration displacement diagram of drill pipe of different rigs; (b) vibration displacement diagram of different drill support plates; (c) vibration displacement diagram of power heads of different rigs; (d) vibration displacement diagram of different drilling rigs.
