From: Understanding the hydrological response of a headwater-dominated catchment by analysis of distributed surface–subsurface interactions

Figure 5

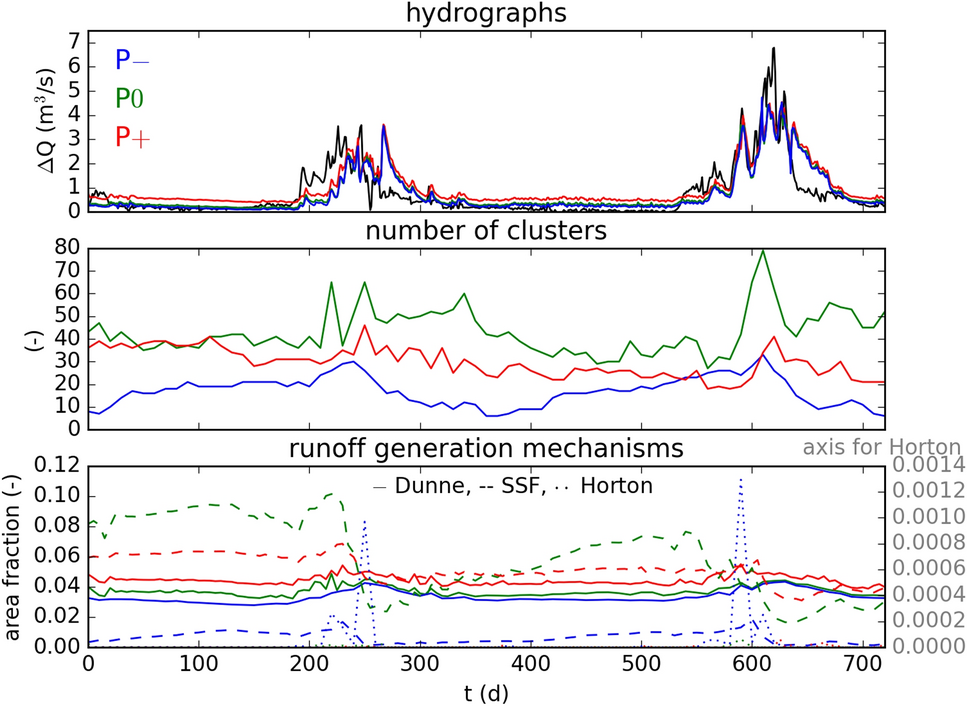

Top: Model discharge predictions at PH for different model variations with the boundary condition subtracted to visualize isolated processes within the catchment. The observed discharge at PH is plotted with a black continuous line. Middle: Number of disconnected wet clusters. Bottom: Runoff generation mechanism dynamics in the catchment. The figure plots the fraction of the catchment area that showcases a certain runoff generation mechanism over time.
