Figure 2
From: Aerosol-based functional nanocomposite coating process for large surface areas

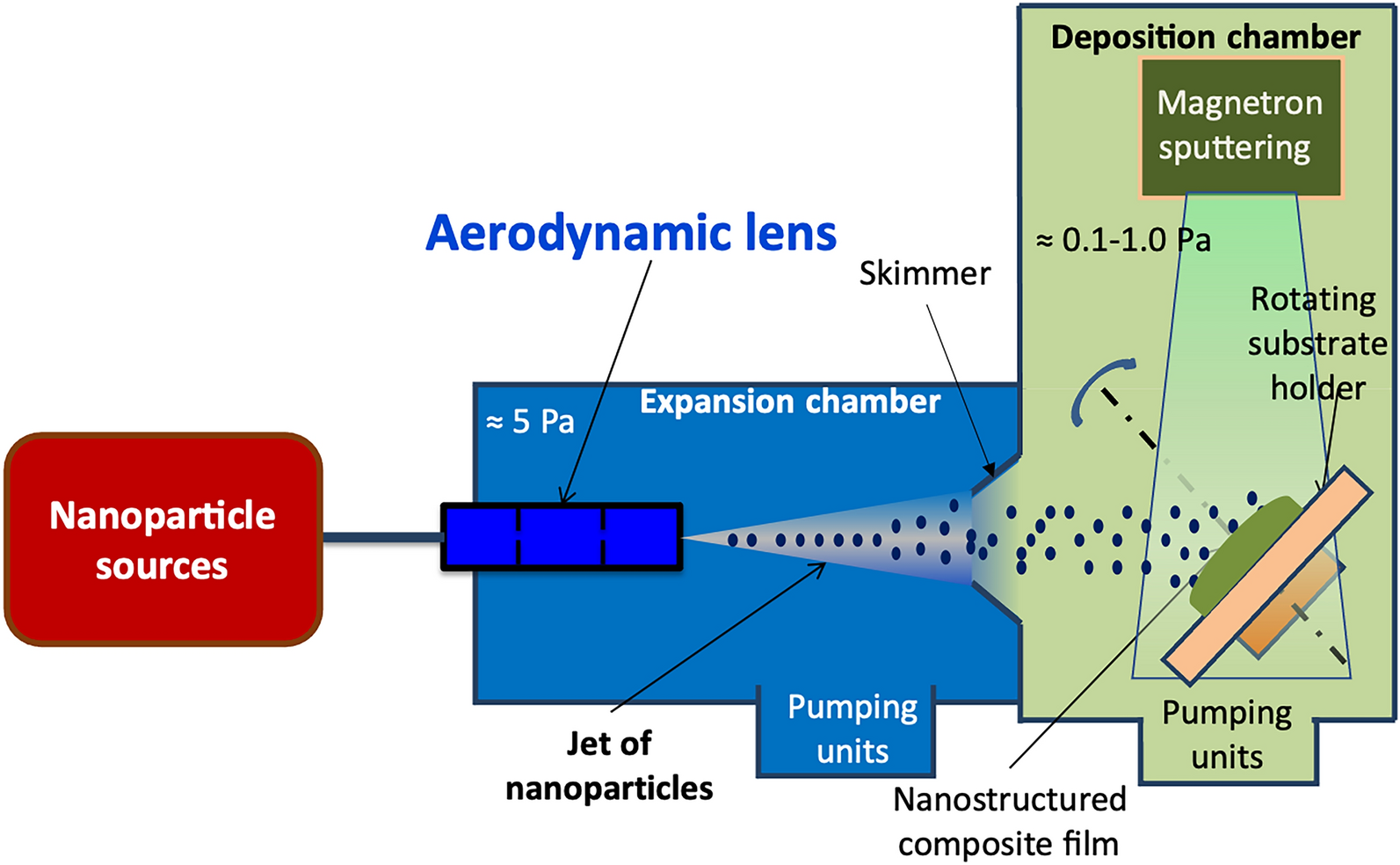

Scheme of the nanocomposite thin film process constituted by a source of nanoparticles connected to an expansion chamber equipped with an aerodynamic lens allowing the transfer of the nanoparticles to the sputtering reactor.
