Figure 8
From: Aerosol-based functional nanocomposite coating process for large surface areas

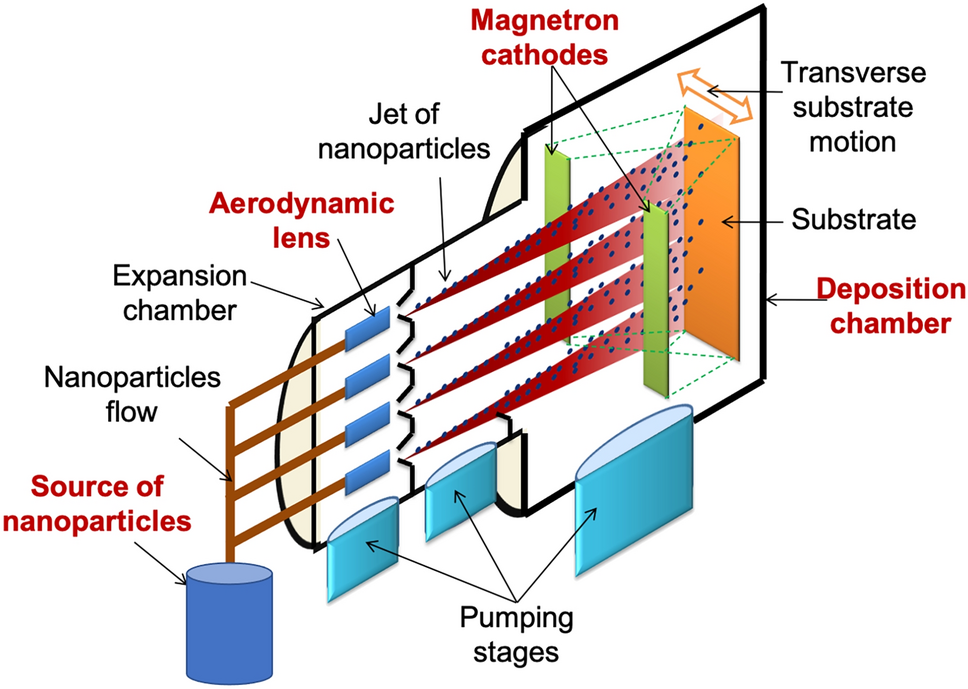

Scheme of a prototype reactor combining a source of nanoparticles, an expansion chamber equipped with four aerodynamic lenses vertically positioned, and a sputtering deposition chamber in which the motion of the substrate-holder is transversal to the nanoparticles.
