Figure 19
From: Evolution process and failure mechanism of a large expressway roadside landslide

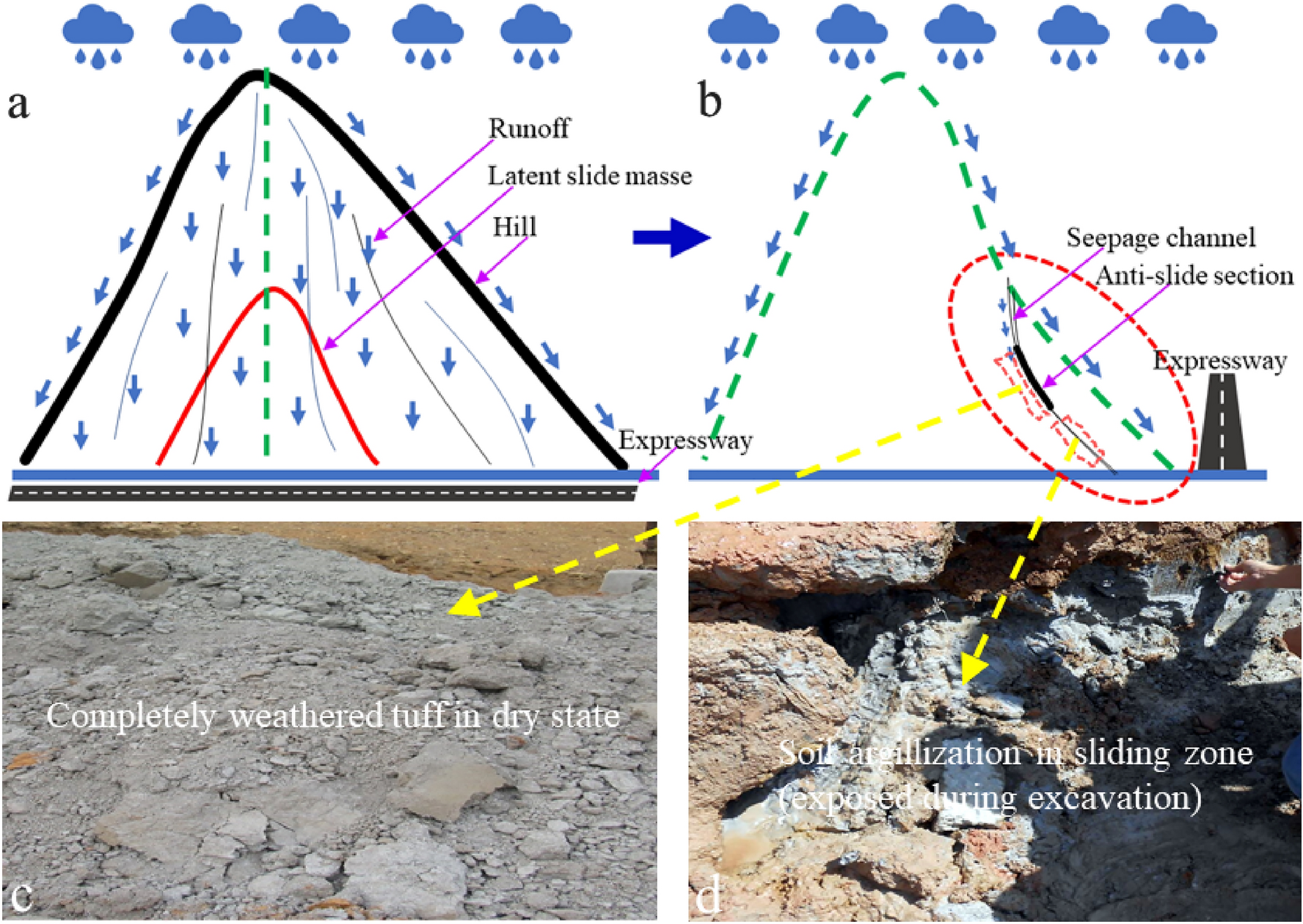

Occurrence mechanism of slope sliding caused by rainwater infiltration. (a) Schematic diagram of the sliding mass; (b) profile of the sliding mass (lateral view); (c) completely weathered tuff in natural dry state; (d) mudding state of the slip zone soil mixed by completely weathered tuff and silty clay.
