Figure 3

From: Development of a comfort suit-type soft-wearable robot with flexible artificial muscles for walking assistance

Figure 3

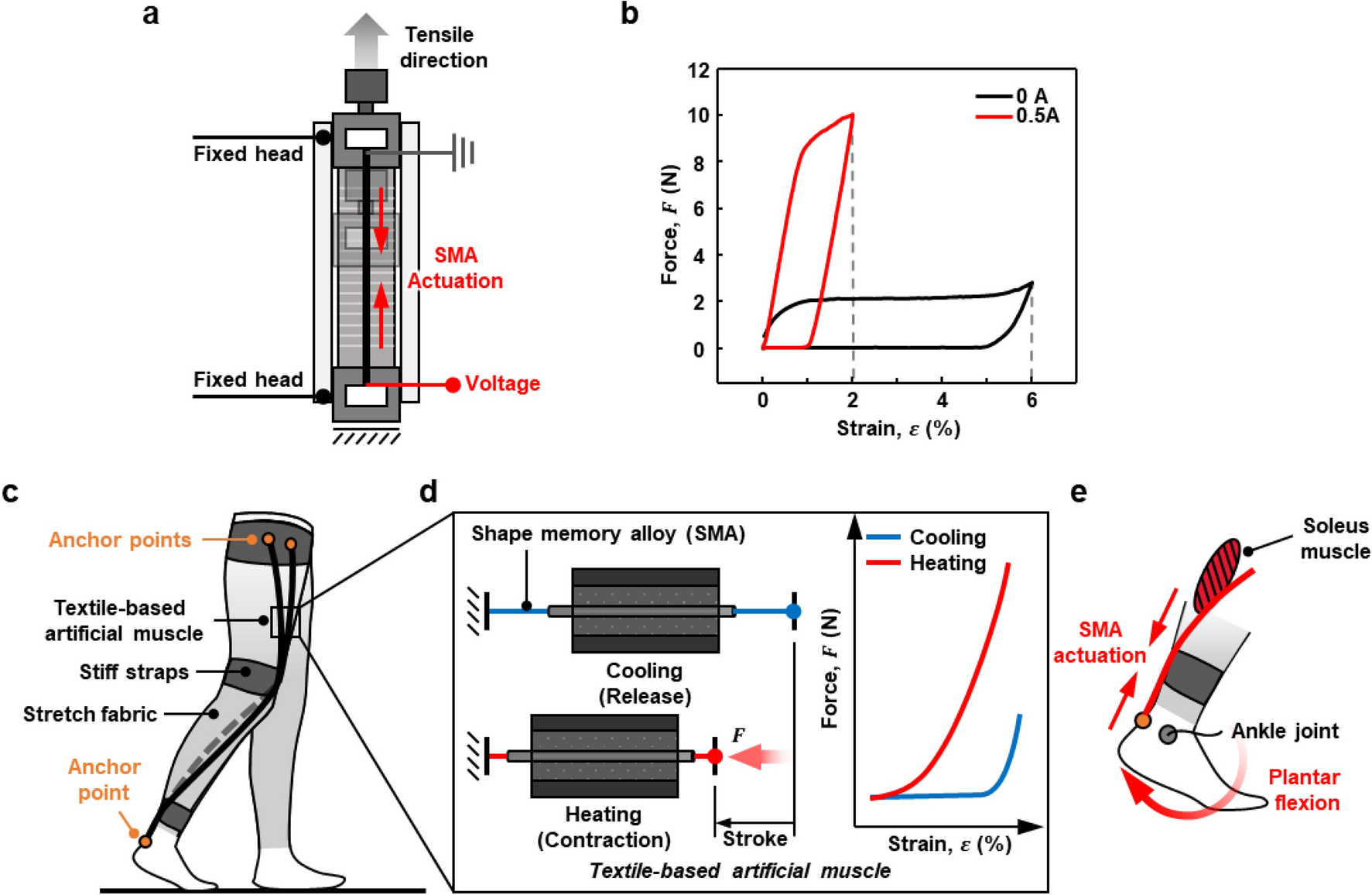

Characterization of the SMA actuator and conceptual actuator design of a suit-type soft wearable robot. (a) Schematic diagram of the experimental setup for tensile testing. (b) Measured 0.006-mil SMA blocked force as functions of strain and input current. (c) Overview of the suit-type soft wearable robot. (d) The cooling and heating of the SMA actuators. (e) The torque inducing the plantar flexion of the ankle.
