Figure 3
From: Label-free macrophage phenotype classification using machine learning methods

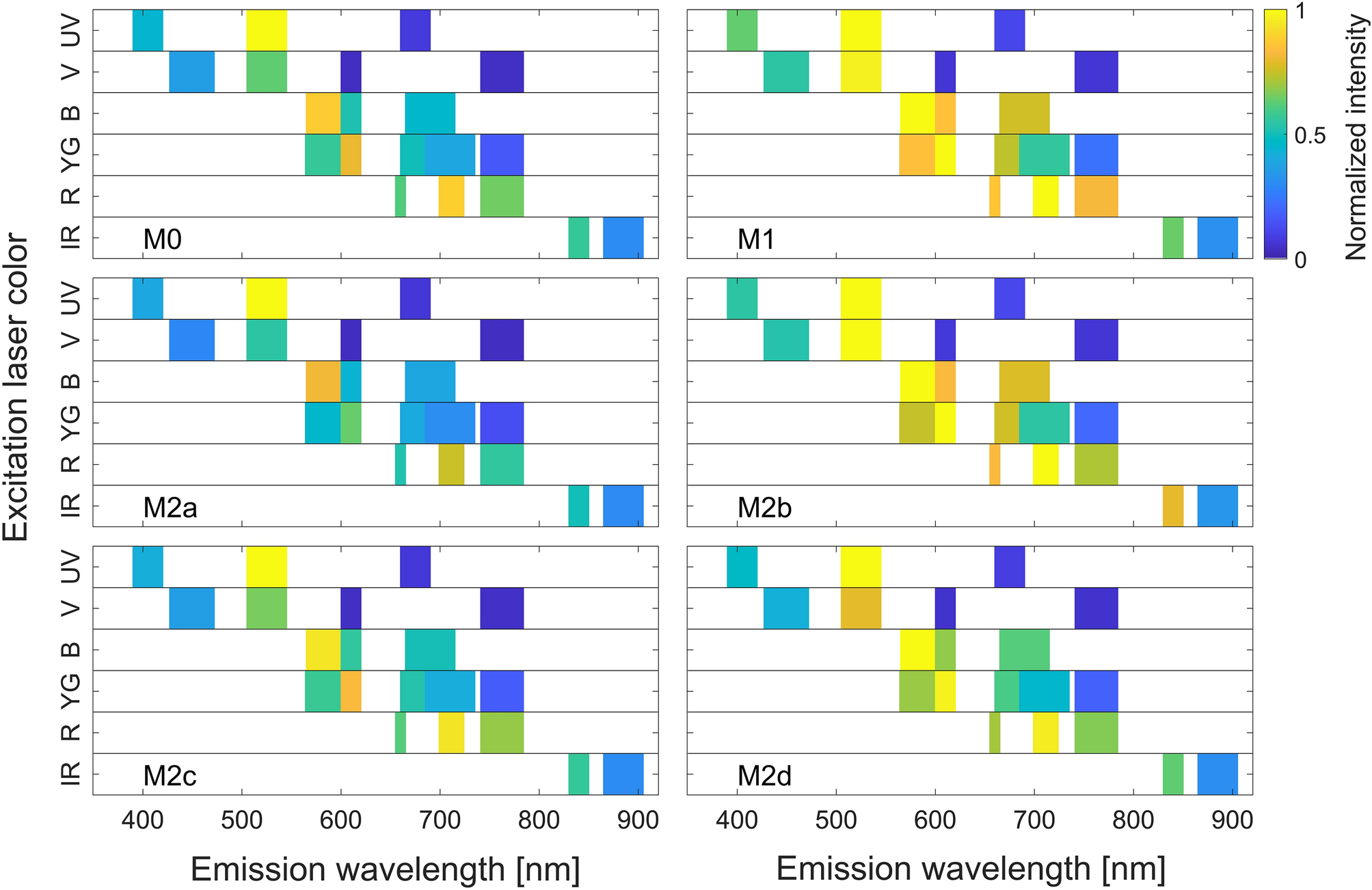

An intensity plot for the average height of the forward scatter signal for each macrophage phenotype. The signal is collected across all available optical detectors upon exposure to infra-red (IR), red (R), yellow/green (YG), blue (B), violet (V), and ultraviolet (UV) lasers at emission wavelengths 808 nm, 638 nm, 561 nm, 488 nm, 405 nm, respectively. The intensity is normalized to the same scale across all phenotypes. Each colored block represents the collected signal per each detector generated after excitation with the corresponding laser.
