Figure 6
From: Identification and analysis of isoflavone reductase gene family in Gossypium hirsutum L.

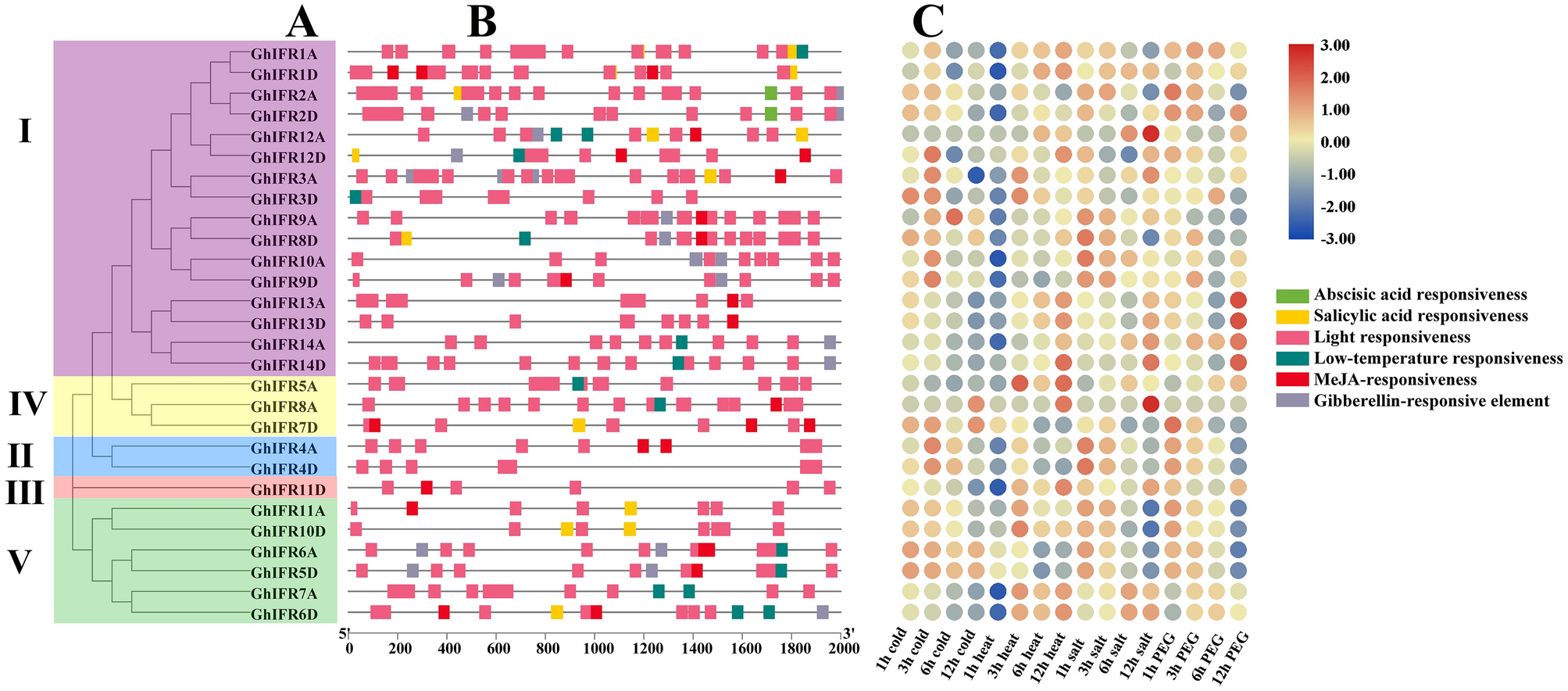

Phylogenetic tree, cis-acting elements and heat map analysis of GhIFR genes in G. hirsutum. (A) Phylogenetic tree of GhIFR genes, (B) Cis-acting elements in promoters of GhIFR genes, (C) Heatmap of GhIFR genes under different abiotic stresses.
