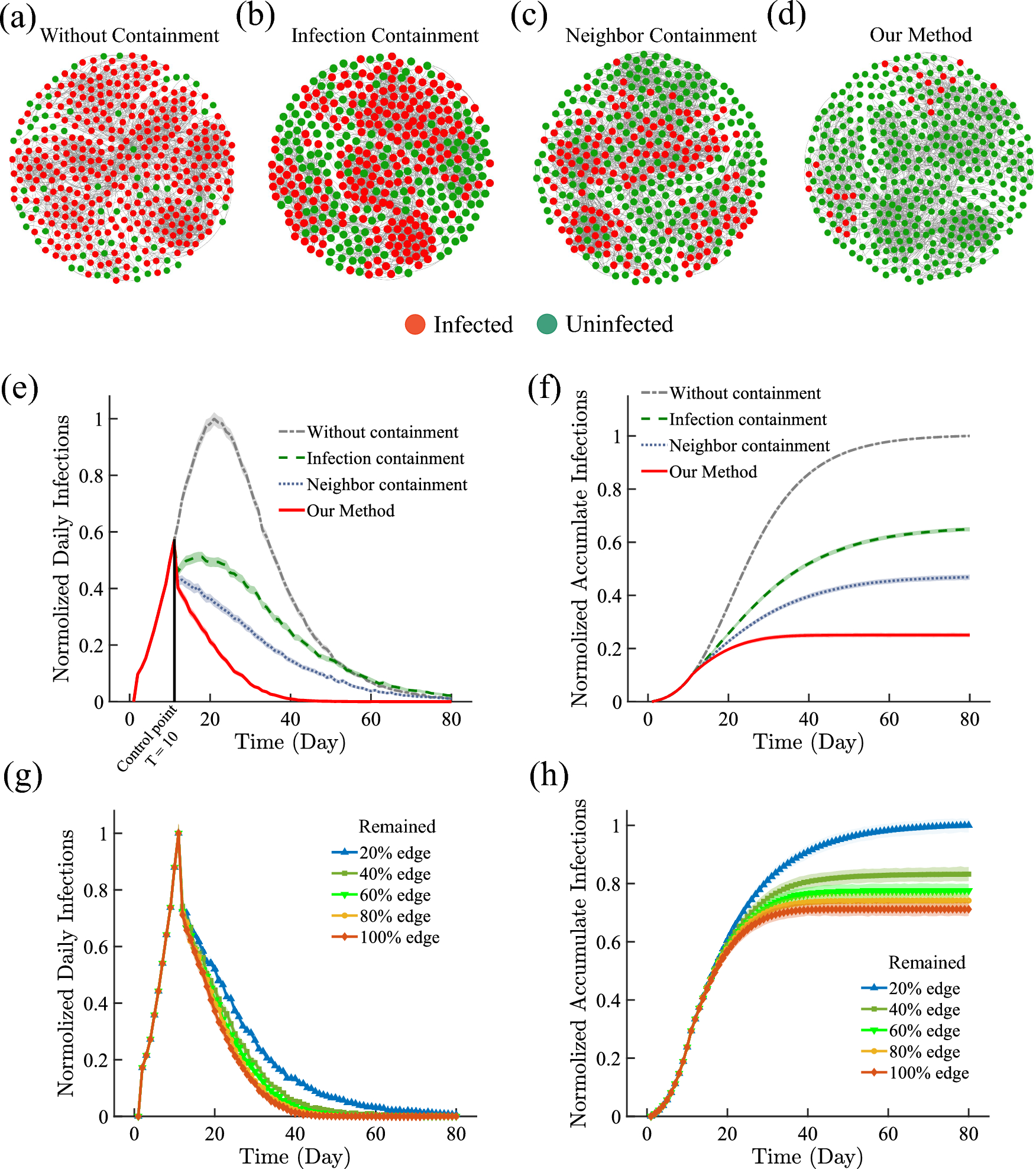

Figure 5
From: Identify hidden spreaders of pandemic over contact tracing networks
Containment Effectiveness of the Proposed Scheme on Simulated COVID-19 Spreading. From \(T=10\) of COVID-19 spreading simulation on the ISA network, we conduct different approaches separately to contain the pandemic, including the proposed method (i.e. Dynamic Containment), the Infection Containment and the Neighbor Containment (see Sect. SI 4 for details). For the Neighbor Containment and the proposed method, we select a total of \(2\%N\) of individuals to screen and then quarantine those tested positive at each time step. (a) Visualization of infected population without conducting any contain scheme and (b–d) the 3 different control schemes). (e) The number of daily new infections in different control schemes. The value of each curve is divided by the highest point at that time to normalize to [0,1]. (f) The cumulative number of infections corresponding to (e). (g–h) The performance of our control scheme under an incomplete network where a fraction of links are randomly removed in the detection process.
