From: Electron–phonon interaction toward engineering carrier mobility of periodic edge structured graphene nanoribbons

Figure 3

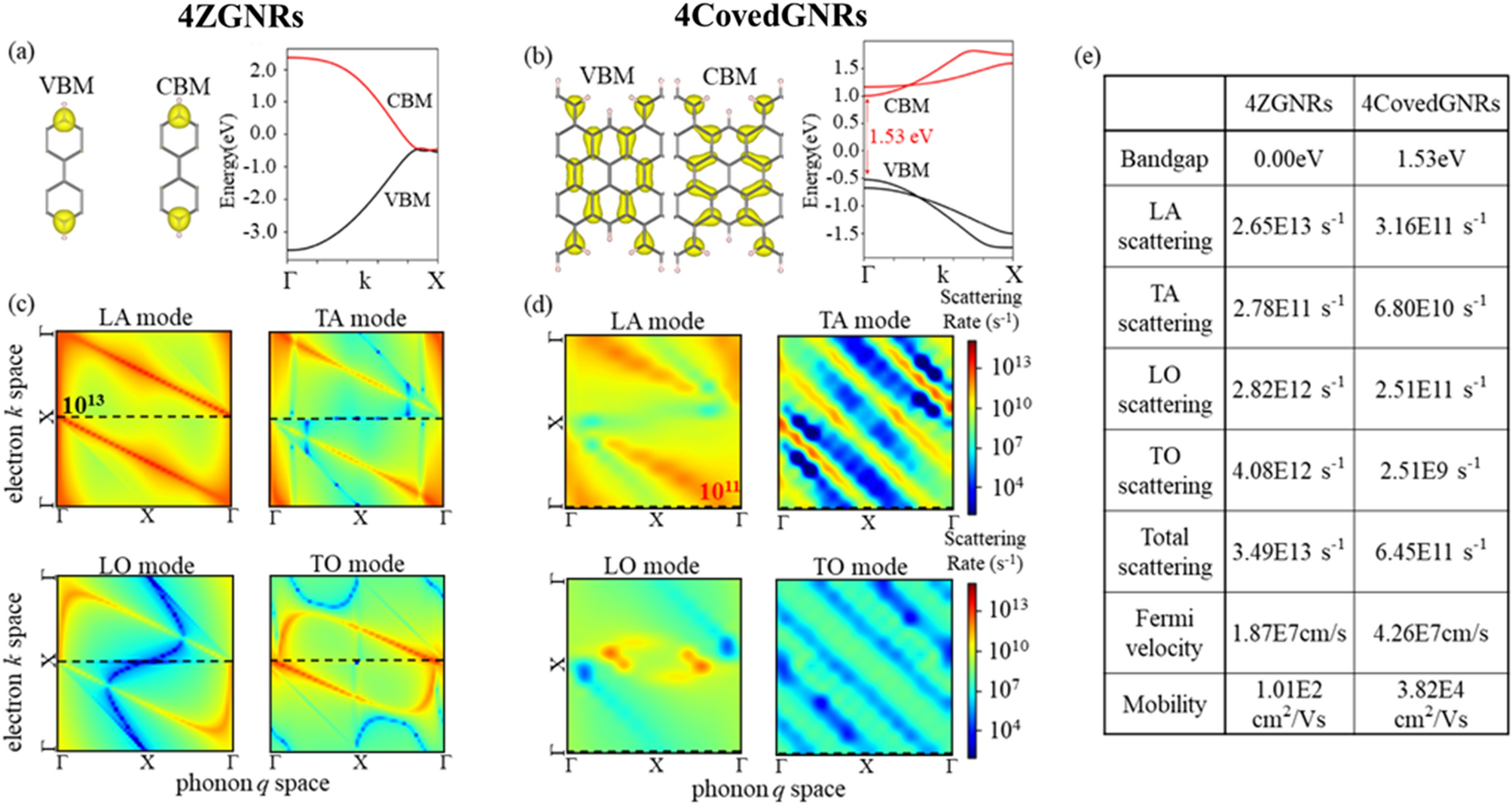

Electronic properties of 4ZGNRs and 4CoveGNRs, respectively. (a,b) The electron density distribution of CBM/VBM in unit cell and their band structure along the high symmetry lines. (c,d) The full band calculation of electron–phonons scattering rate at conduction band. The dash line highlights the CBM and is integrated to calculate the scattering time at CBM. (e) Band gap, individual scattering rate in LA/TA/LO/TO phonon mode, total scattering rate, fermi velocity and mobility value of 4ZGNRs and 4CoveGNRs.
