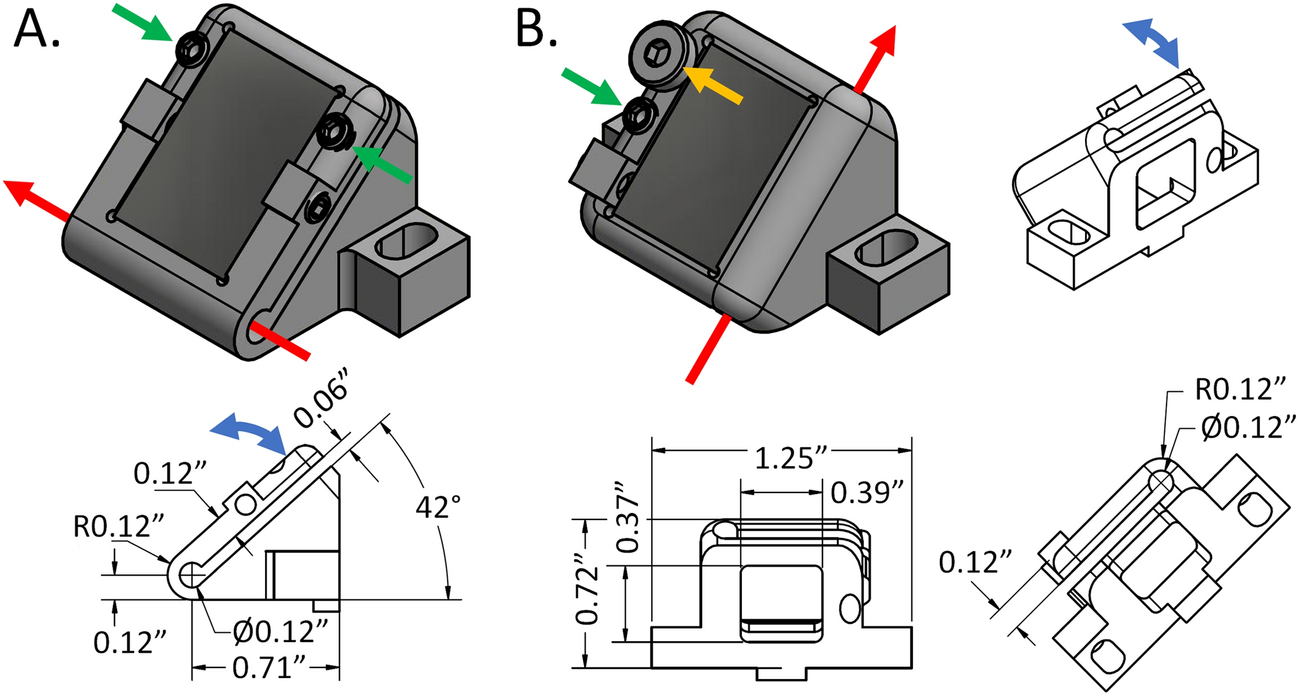

Figure 3

3D printed kinematic mounts. Red arrows indicate the axis of rotation while the blue arrows indicate the direction of motion of the mounted optic. Green and Yellow arrows indicate adjustment screw locations, set and machine screws respectively. (A) Aluminum mirror mount, “M” and (B) DCM mount (see Fig. 2).
