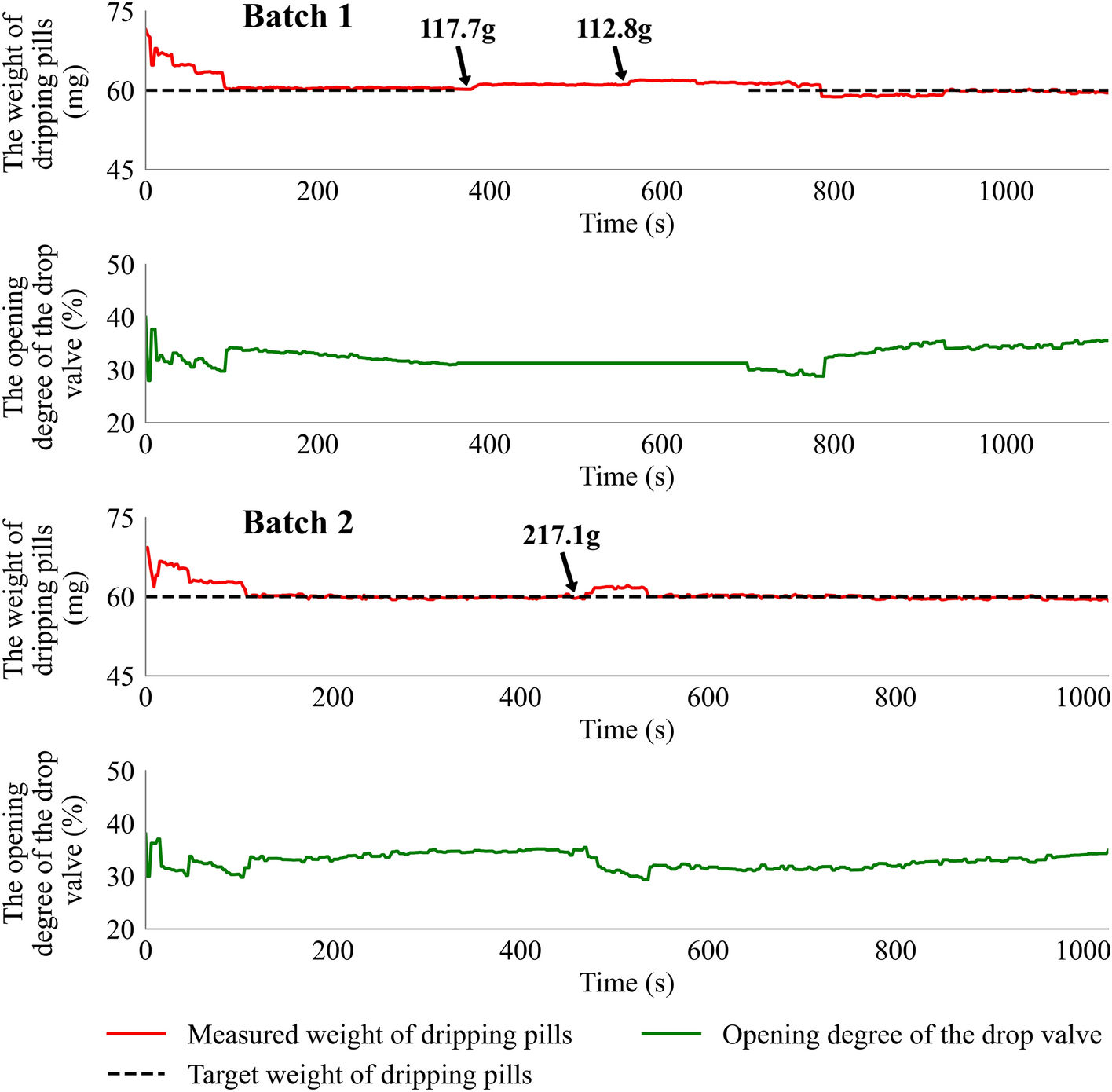

Figure 10
From: Real-time quality control of dripping pill’s weight based on laser detection technology
The weight of the dripping pills and the opening degree of the drop valve during two feedback control experiments. The arrow marks represent adding hot dispersing liquid to the liquid tank.
