From: Toll-like receptors and nuclear factor kappa B signaling pathway involvement in hepatorenal oxidative damage induced by some food preservatives in rats

Figure 5

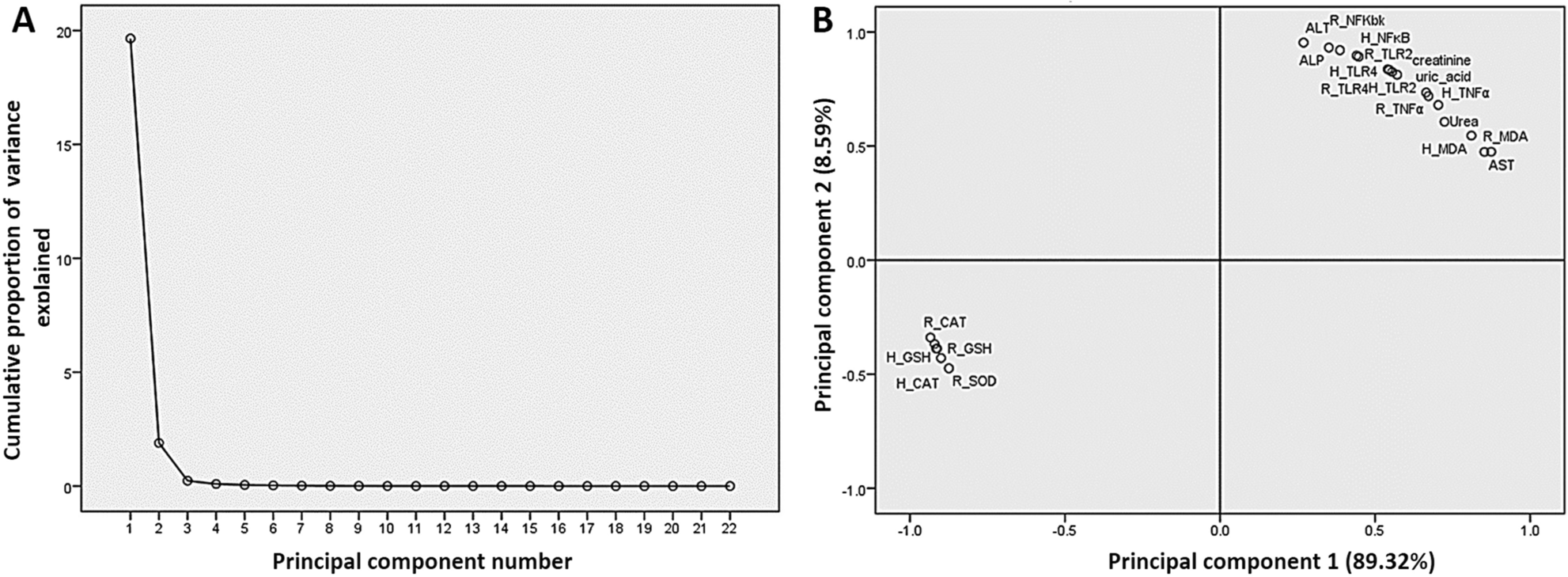

The principal component analysis plot shows the estimated variables' relationships. (A) Cumulative proportion of variance as a function of the number of principal components (PC). (B) All biochemical and gene expressions indicators are plotted as a function of PC1 and PC2, which account for 89.32% and 8.59% of the variance, respectively. H_ hepatic, R_ renal, AST aspartate transaminase, ALT alanine transaminase, ALP alkaline phosphatase, MDA malondialdehyde, SOD superoxide dismutase, CAT catalase, GSH reduced glutathione, NF-κB nuclear factor kappa-light-chain-enhancer of activated B cells, TLR-2 toll-like receptors 2, TLR-4 toll-like receptors 4, TNF-α tumor necrosis factor-alpha.
