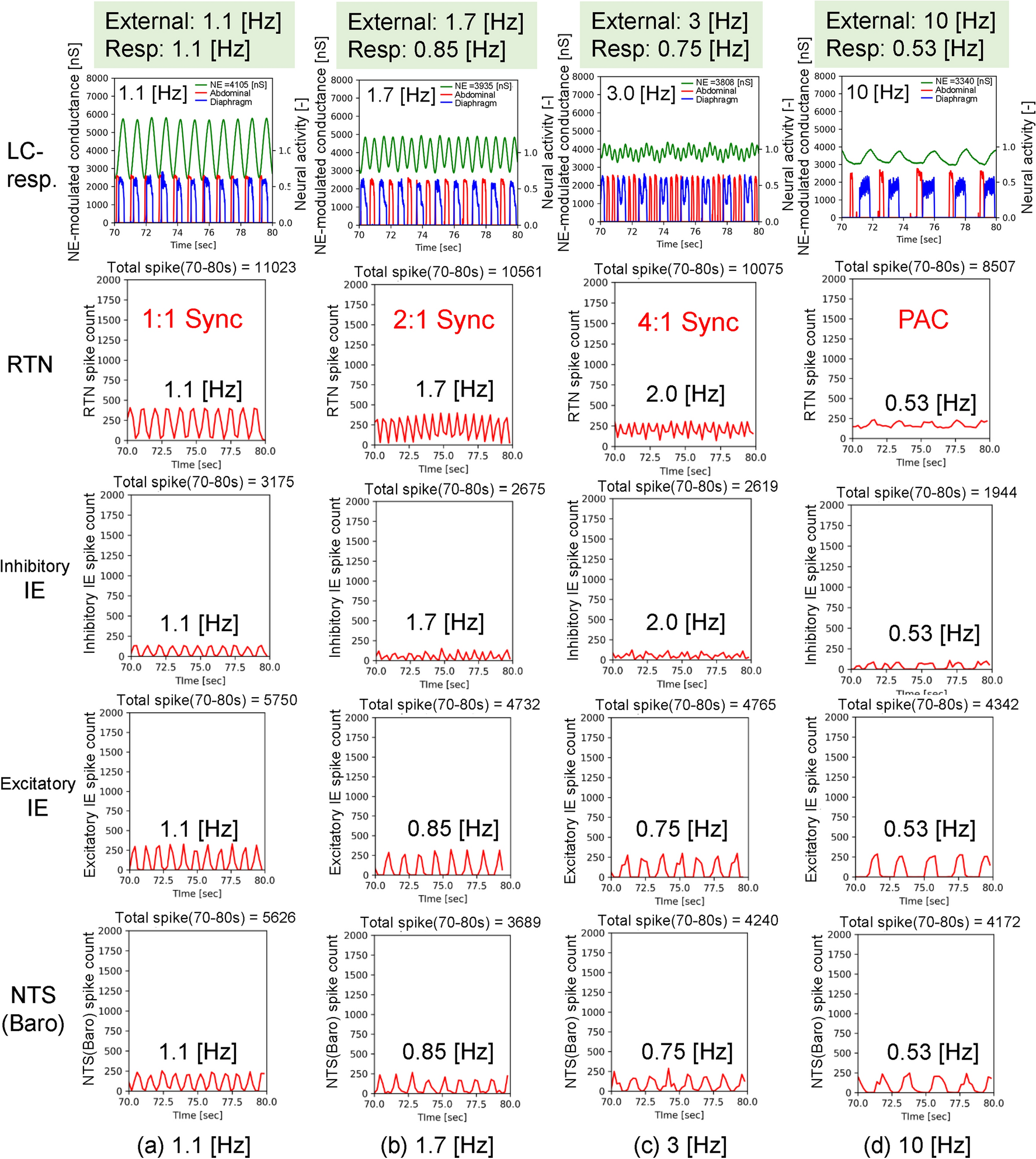

Figure 7
Comparisons of neuronal activity of LC-respiratory, RTN, inhibitory IE, excitatory IE and NTS (Baro) in mode shifts from LC-respiratory entrainment with 1:1 phase locking to PAC in cases with an amplitude of − 12 [pA] and frequencies ranging from 1.1 to 10 [Hz] in condition 1. The first row shows the NE-modulated conductance, inspiration neuronal activity and expiration neuronal activity from 70 to 80 [s] in green, blue and red lines, respectively. The 2nd, 3rd, 4th and 5th rows show neuronal activity of RTN, inhibitory IE, excitatory IE and NTS (Baro) with red lines from 70 to 80 [s].
