From: Sb2Te3 nanoparticle-containing single-walled carbon nanotube films coated with Sb2Te3 electrodeposited layers for thermoelectric applications

Figure 3

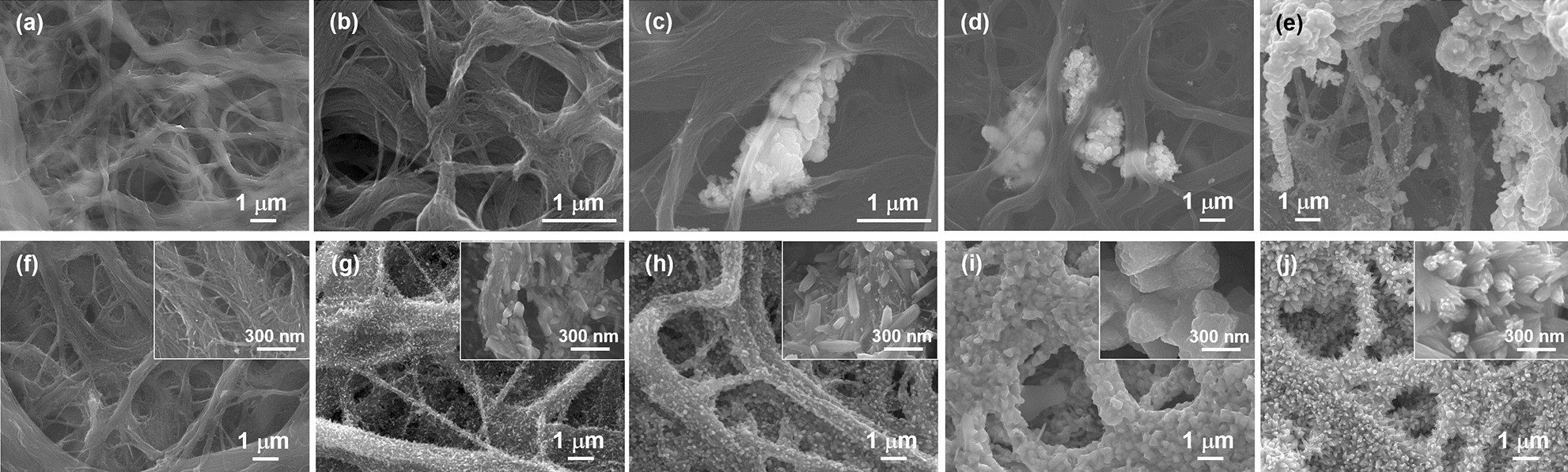

Surface SEM images of SWCNT films with different quantities of nanoparticles and excluding electrodeposition: (a) no nanoparticles, (b) 5 mg, (c) 10 mg, (d) 50 mg, and (e) 100 mg. Surface SEM images of SWCNT films with different quantities of nanoparticles and with electrodeposition: (f) no nanoparticles, (g) 5 mg, (f) 10 mg, (i) 50 mg, and (j) 100 mg.
