From: Genomic profiling of idiopathic peri-hilar cholangiocarcinoma reveals new targets and mutational pathways

Figure 1

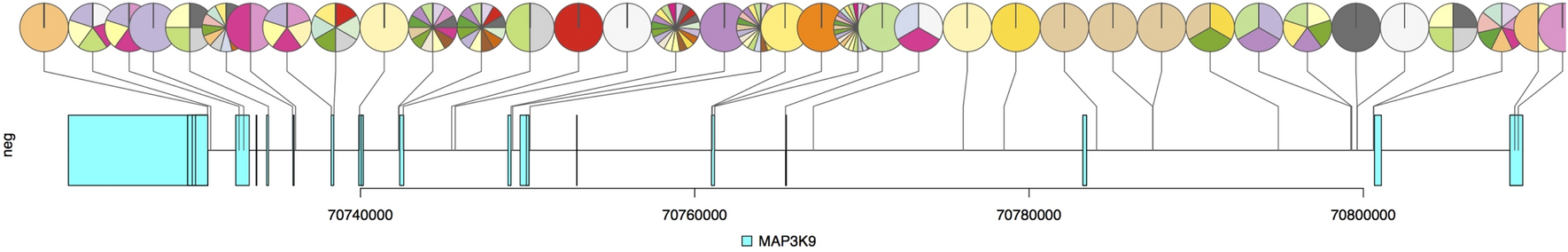

Genomic locations of SNVs in MAP3K9. Figure 1 demonstrates the large number and locations of SNVs across the MAP3K9 gene. Exons are depicted as blue blocks. Thirty-seven unique SNVs were observed in total. Each pie chart portrays the number of patients who were found to have that specific variant at that genomic location. The color of each pie chart slice is specific to an individual patient and is conserved across all pie charts.
