Figure 3

From: Population dynamics and drug resistance mutations in Plasmodium falciparum on the Bijagós Archipelago, Guinea-Bissau

Figure 3

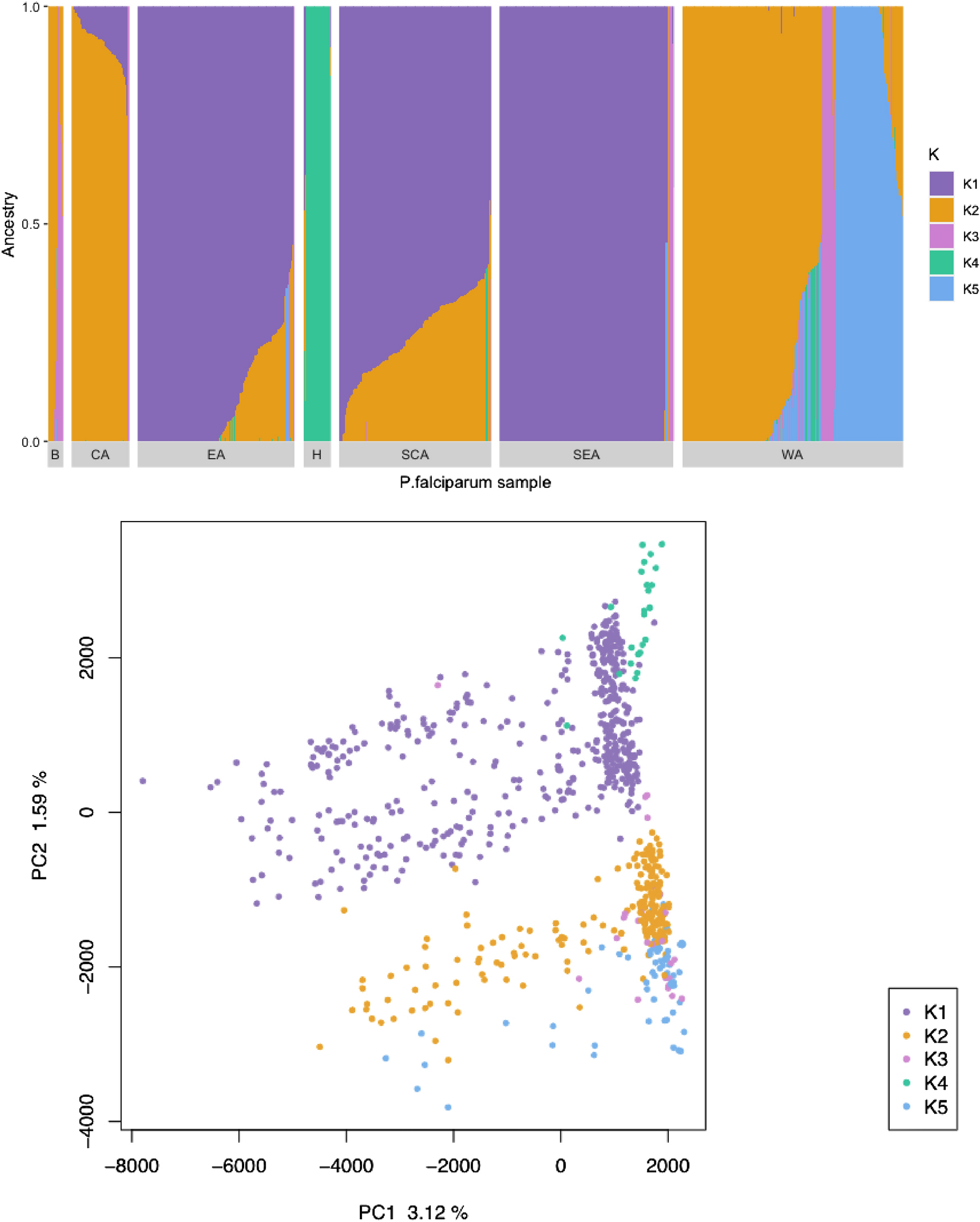

(top) Ancestry analysis of P. falciparum isolates from (B) the Bijagós Archipelago, (CA) Central Africa, (EA) East Africa, (H) Horn of Africa, (SCA) South Central Africa, (SEA) Southeast Africa and (WA) West Africa. Individual isolates are plotted along the x-axis, with ancestry coefficients on the y-axis. The number of ancestral populations, K, used in this analysis was K = 5. (bottom) Principal component analysis generated using pairwise genetic distance matrices. This is coloured by the maximum K value for each isolate.
