From: Genome-wide characterization and comparative analysis of the OSCA gene family and identification of its potential stress-responsive members in legumes

Figure 6

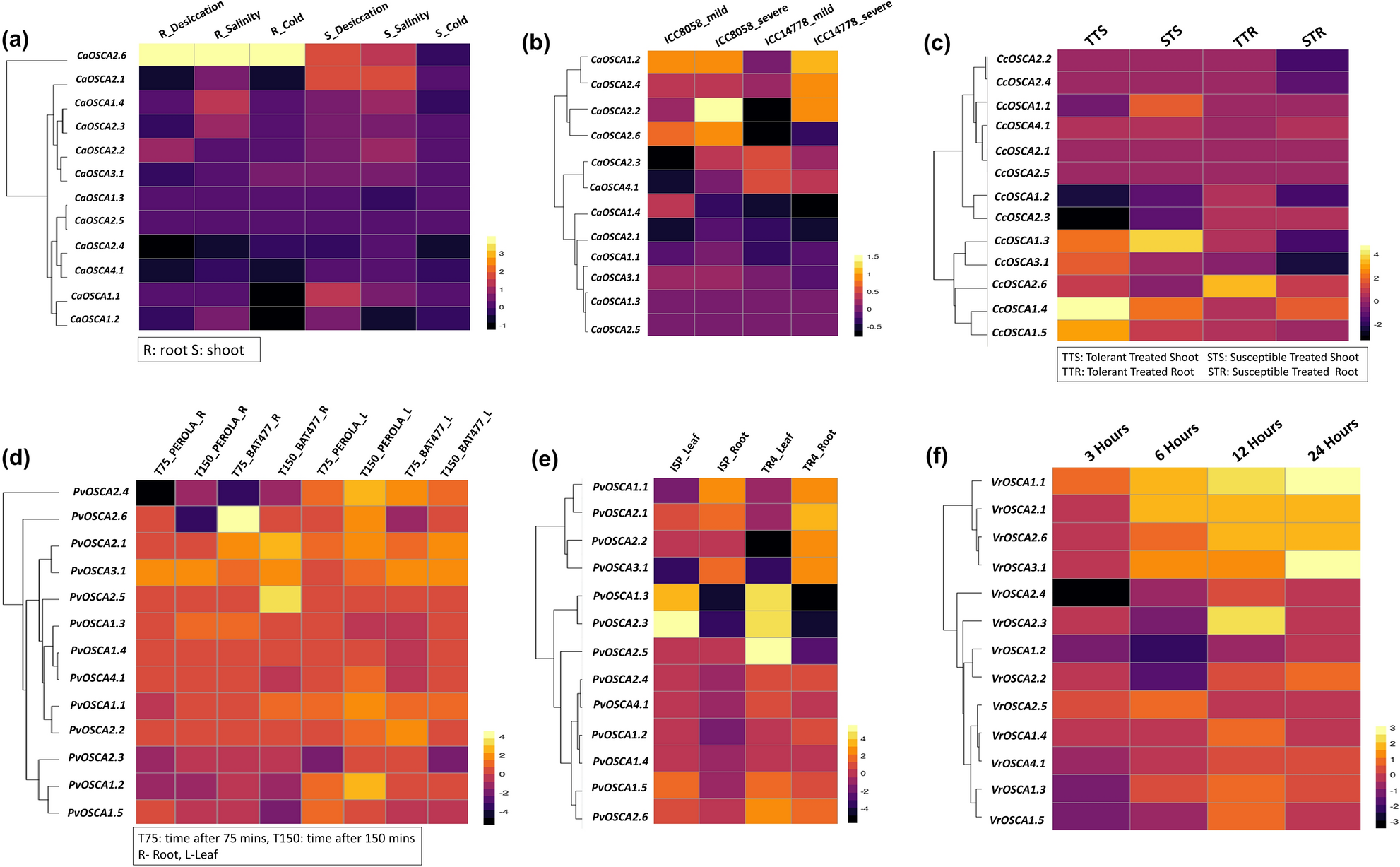

Expression profiles of OSCA genes in different abiotic stresses. The genes are named on the left, and condition/tissue is labelled at the top. The scale bar represents the log_2 Fold Change based on FPKM values; (a) Expression pattern of CaOSCA genes in three abiotic stress -cold, desiccation and salinity in the root (R) and shoot (S); (b) Expression pattern of CaOSCA genes in mild and severe drought stress; (c) Expression profiles of CcOSCA genes in salinity stress in ICP 7-salt-tolerant genotype (indicated by TTS-Tolerant treated shoot and TTR- Tolerant treated root), ICP 1071-Salt susceptible genotype (indicated by STS-Susceptible treated shoot, STR-Susceptible treated root); (d) Expression profiles PvOSCA genes in drought stress in two genotypes at two different time points; (e) Expression profiles of PvOSCA genes in salinity stress in the root (R) and leaf (L) in two genotypes; (f) Expression profiles of VrOSCA genes in desiccation stress at four different time points.
