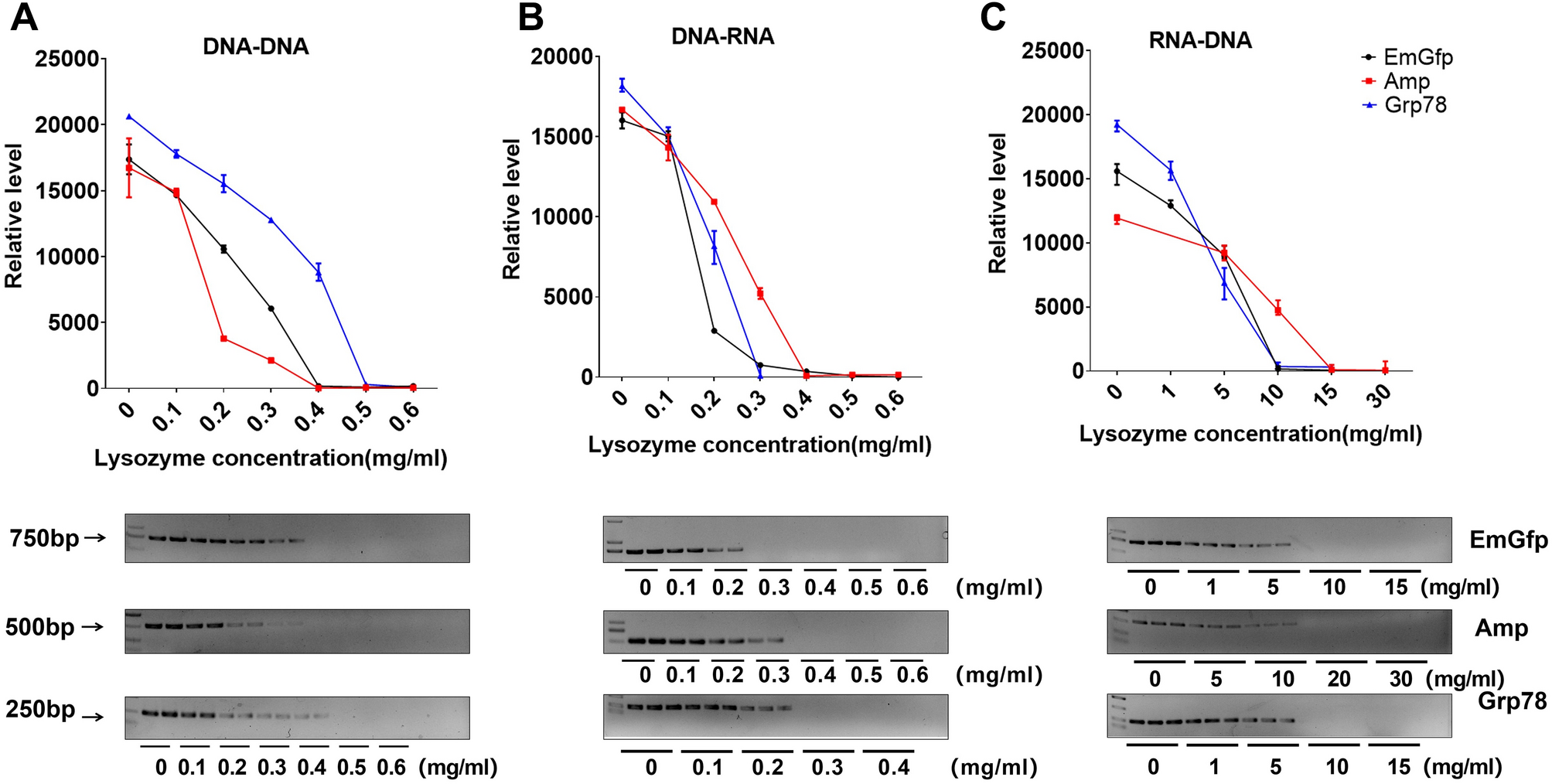

Figure 2
From: In vitro PCR verification that lysozyme inhibits nucleic acid replication and transcription
Cell lysate-treated lysozyme blocks EmGfp, Amp and Grp78 DNA replication, transcription and reverse transcription. (A)–(C) Gel electrophoresis of PCR products. Cell lysate-treated lysozyme at the corresponding working concentration was added to the reaction system: (A) replication, (B) transcription and (C) reverse transcription. Intensity analysis of target bands in gel electrophoresis is shown at the top of the blot. Data are representative of 2 independent experiments and presented as the mean ± SD; *p < 0.05, ***p < 0.001. Significant differences were evaluated using one-way ANOVA with a post hoc test (Fisher’s least significant difference).
