Figure 2 | Scientific Reports

Figure 2

From: Deep learning synthesis of cone-beam computed tomography from zero echo time magnetic resonance imaging

Figure 2

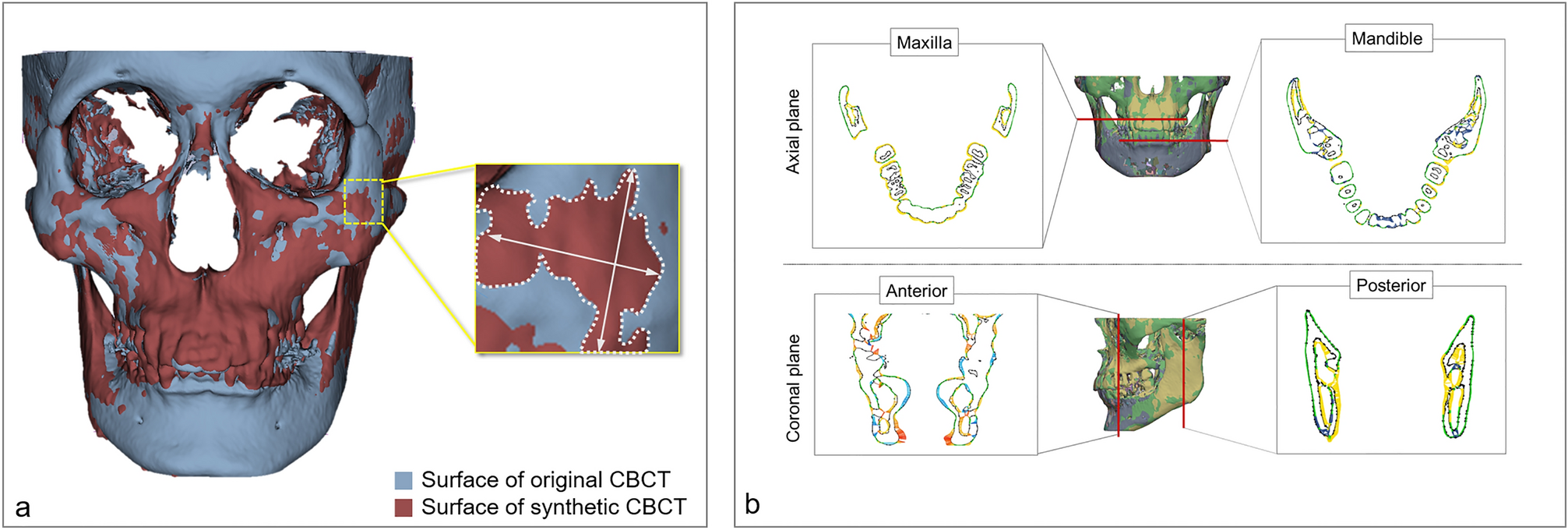

Surface deviation of synthetic CBCT. (a) The deviation of the overall three-dimensional model. (b) The deviation measurement in axial (maxilla and mandible) and coronal (anterior and posterior) planes. The black line indicates the surface of the original CBCT, and the colored line indicates deviated area. CBCT, cone-beam computed tomography; syCBCT, synthetic CBCT.
