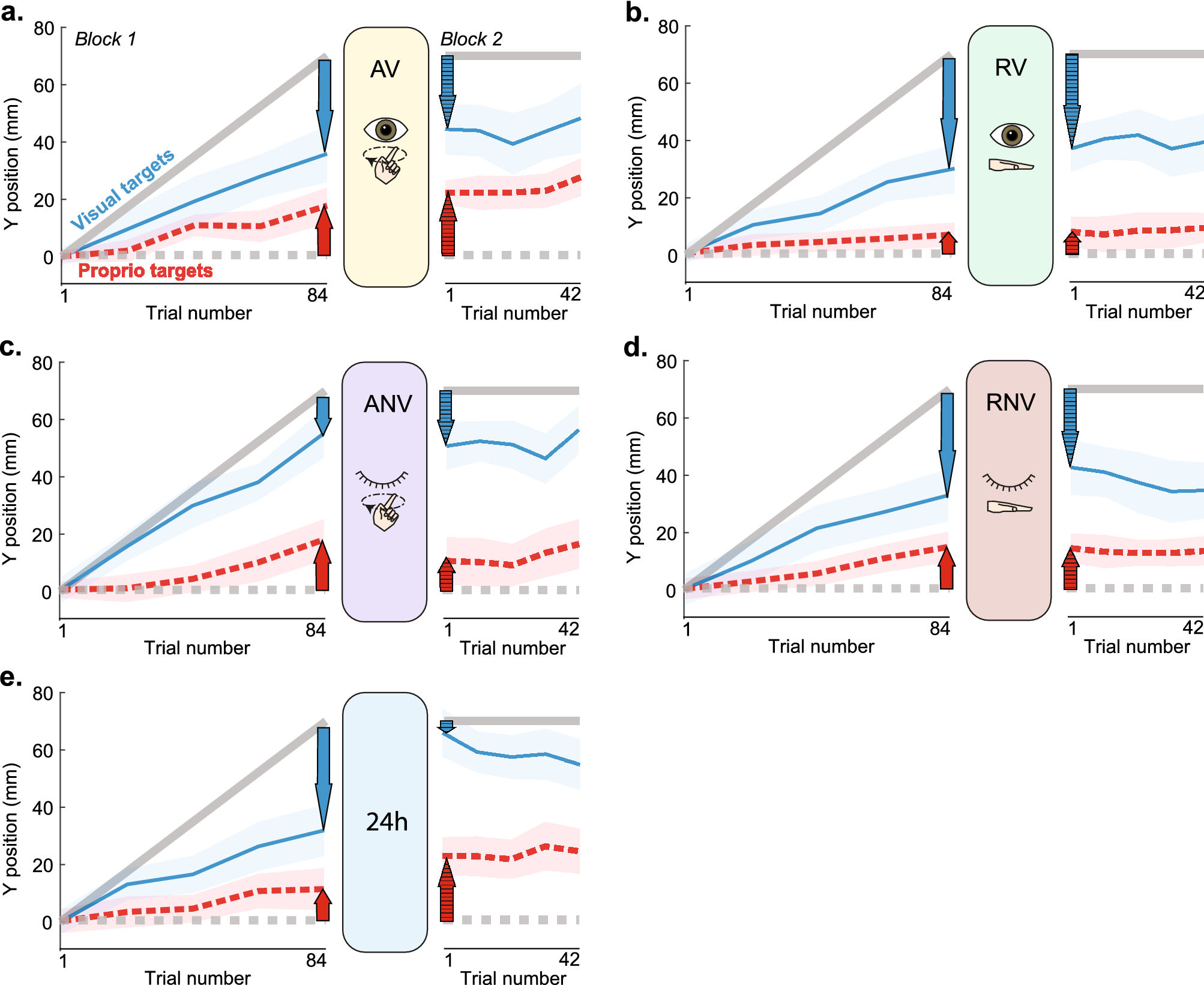

Figure 3
From: Retention of visuo-proprioceptive recalibration in estimating hand position
Mean task performance within groups. Blue line represents group mean estimates of V targets. Red line represents group mean estimates of P targets. Shaded regions represent SEM. (A)–(D) For the active and rest, vision and no vision groups, retention (cross-hatched arrows) appears similar in magnitude to recalibration (solid arrows) for each modality, with small variations. (E) For the 24 h group, visual retention is smaller than visual recalibration, while proprioceptive retention appears larger than proprioceptive recalibration. X-axis values indicate total number of individual trials elapsed, including P, V, and VP, but only P and V data is plotted for clarity.
