Figure 2

From: In vivo imaging of renal microvasculature in a murine ischemia–reperfusion injury model using optical coherence tomography angiography

Figure 2

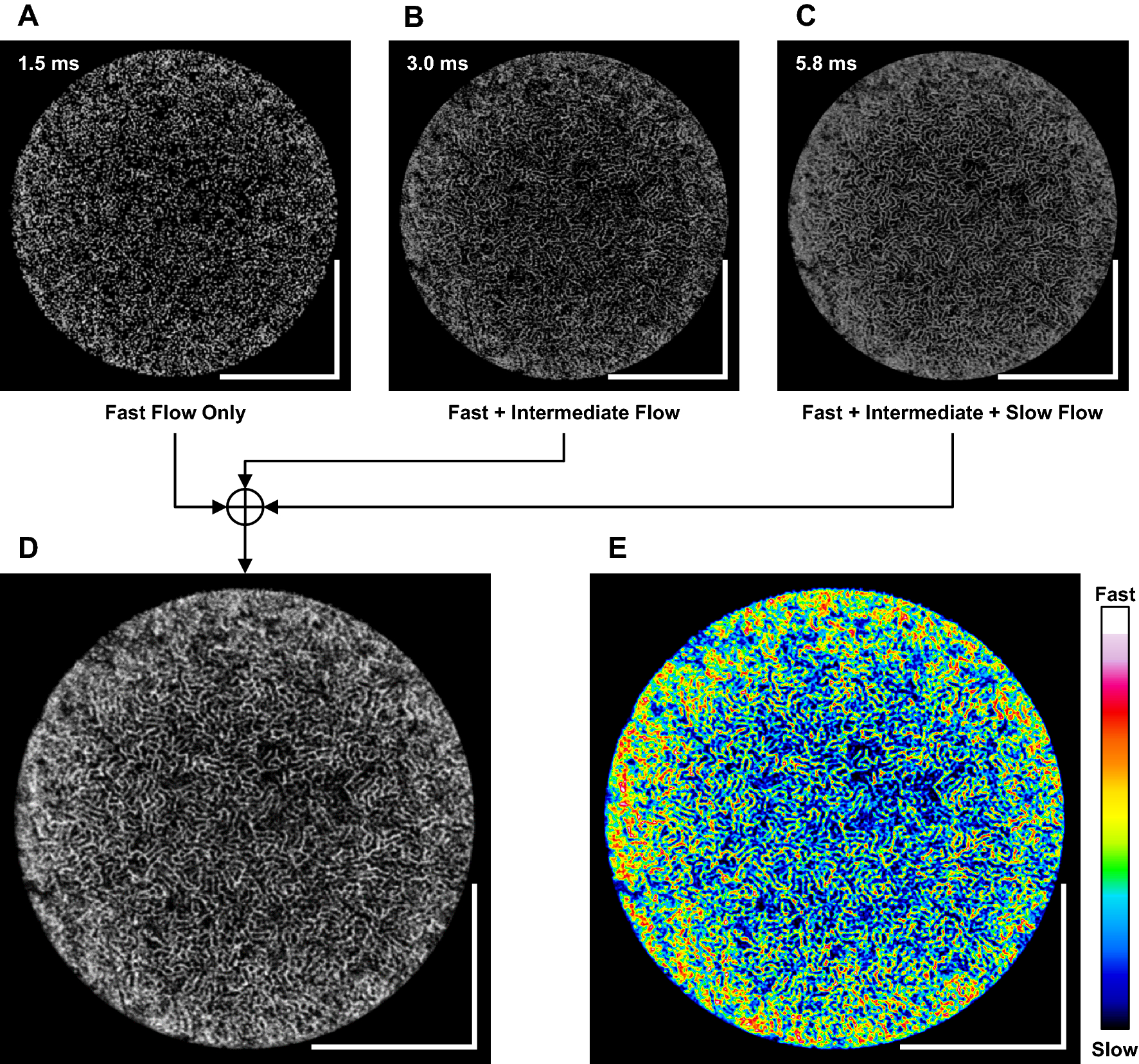

Semi-quantitative OCTA image processing. (A–C) Three raster scans with different inter-B-scan times were sequentially acquired over the same field of view. (D) En face projected three OCTA images were summated to generate semi-quantitative OCTA image. (E) False-color mapping helps visual perception of the fast and slow blood flow speeds. Scale bars 1 mm.
